3509ci

The A3 multifunctional 3509ci system is a perfect introduction to the A3 class of colour system. Whether you want to scan, print, copy or fax – these MFP are at home in all areas of work. First-class print quality, user-friendly operation and speeds of up to 35 A4 pages per minute as high-resolution colour printouts make them reliable companions in the mid-range working environment. They are perfectly prepared for the future thanks to their ability to integrate with all common cloud systems. This is, of course, a standard feature of these systems. In addition to energy-efficient toners, the toner cartridges have also been designed with a longer lifetime to minimise the consumption of resources. Functions such as EcoPrint, duplex printing and automatic skipping of blank pages also contribute to achieving this goal.
Find a Retailer

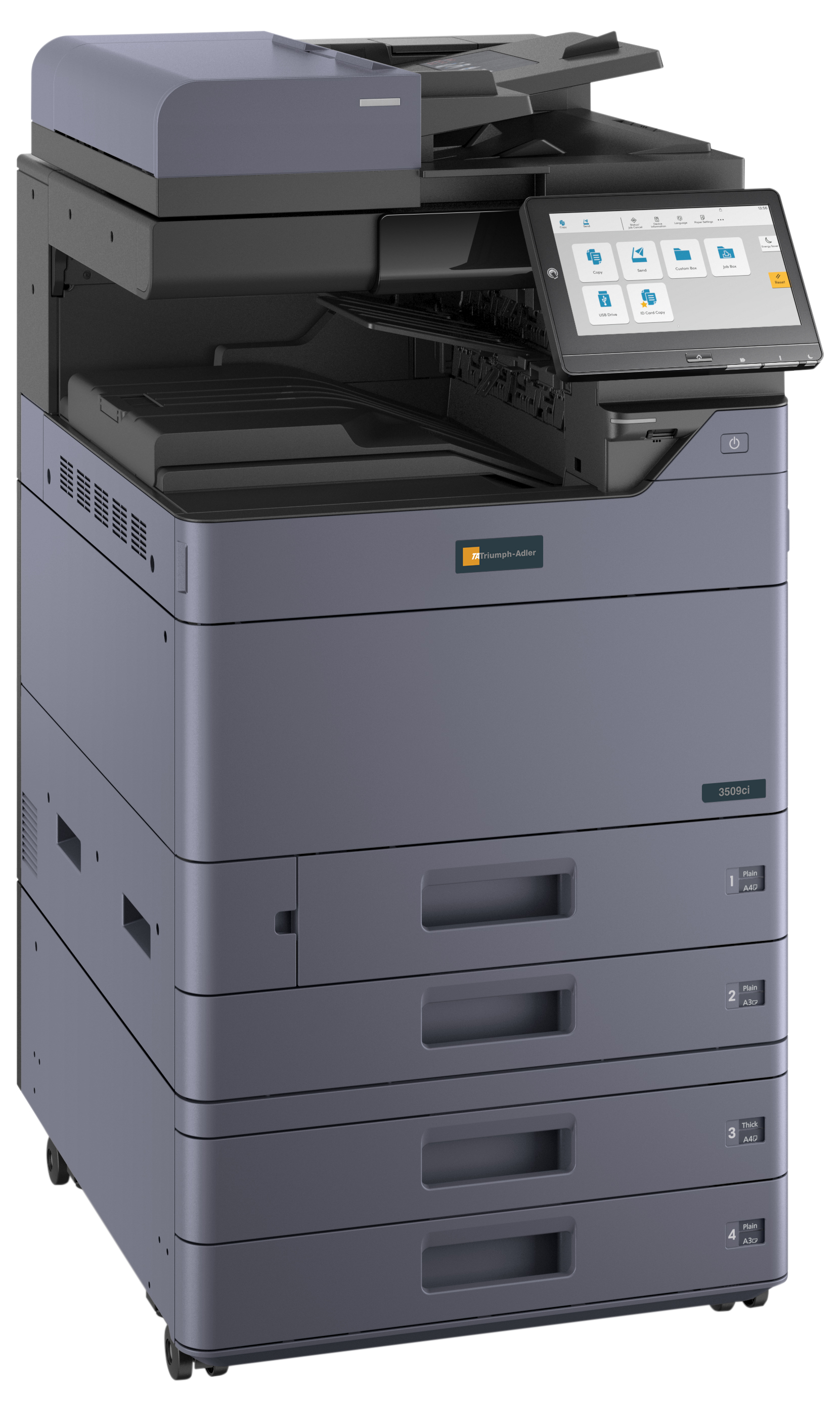

3509ci Image

General

  • TypeDesktop, Console Unit
  • FunctionCopy, print, scan, optional: fax
  • Print technologyLaser colour and b/w
  • Original formatmax A3 from platen glass
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)2 x 500 sheet universal cassettes
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (2nd cassette types)A6R-SRA3
  • Paper feed (Multi-Bypass amount)1 x 500 sheet, 1 x 500 sheet
  • Paper feed (Multi-Bypass types)A6R-SRA3, Banner [305 x 1,219 mm]
  • Paper feed (print-only)SRA3 and banner
  • Paper output500 sheet A4
  • System memory (Optional)320 GB HDD
  • FunctionsAdjustable colour touch screen (10.1 inch), Adjustable colour touch screen (10.1 inch), duplex, 1000 management codes, skip blank pages, motion sensor, encryption/overwriting of hard disk data (Data Security Kit and Trusted Platform Module), secure boot and run time integrity check, trusted platform modul (TPM), etc.
  • Print speed (A4, Simplex) B/W35.0 b/w-pages/min.
  • Print speed (A3, Simplex) B/W17.0 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W35.0 b/w-pages/min.
  • Copy speed (A3, Simplex) B/W17.0 b/w-pages/min.
  • Print speed (A4, Simplex) Colour35.0 colour pages/min
  • Print speed (A3, Simplex) Colour17.0 colour pages/min
  • Copy speed (A4, Simplex) Colour35.0 colour pages/min
  • Copy speed (A3, Simplex) Colour17.0 colour pages/min
  • 1st page (printing, colour)7.7 seconds
  • Warm-up time18.0 seconds
  • Paper weights (Universal cassette min)52.0 g/m²
  • Paper weights (Universal cassette max)300.0 g/m²
  • Paper weights (Multi-Bypass min)52.0 g/m²
  • Paper weights (Multi-Bypass max)300.0 g/m²
  • Paper weights (Duplex min)60.0 g/m²
  • Paper weights (Duplex max)256.0 g/m²
  • System memory (RAM)4.0 GB
  • System memory (SSD)64.0 GB
  • Continuous copying (min)1.0
  • Continuous copying (max)9999.0
  • Zoom (min)25.0 %
  • Zoom (max)400.0 %
  • Zoom (step)1.0 %

Dimensions / Weight

Environment

  • Noise level (busy, b/w)49.5 dB(A)
  • Noise level (busy, colour)50.1 dB(A)
  • Noise level (standby)33.5 dB(A)
  • Mains voltage220/240 V
  • SafetyGS/TÜV, CE
  • Utility frequency50/60 Hz
  • Power consumption (busy)520.0 W
  • Power consumption (max)1750.0 W
  • Power consumption (standby)40.0 W
  • Power consumption (sleep)0.5 W

Printing system

  • Print resolution (max)1,200 x 1,200 dpi
  • Print resolution (min)600 x 600 dpi
  • EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), XPS, PRESCRIBE Ilc
  • FunctionsUSB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, barcode printing, SNMPv3, Mobile Print (Android, iOS)/Apple AirPrint
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9
  • TypeIntegrated within the system
  • ProcessorARM A53 1,6GHz
  • InterfacesUSB 3.0, USB 2.0, 10/100/1000BaseTX, USB host, NFC, SD-Card Slot
  • Print formatA6R-SRA3
  • Network protocolsTCP/IP, Net BEUI

Scanning system

  • Scan speed (Feeder 1, duplex, b/w)200.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)100.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)200.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, colour)100.0 DIN-A4-image pages/min. in 300 dpi
  • Scan formatmax A3
  • File typesTIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, XPS, OpenXPS
  • Interfaces10/100/1000BaseTX
  • Network protocolTCP/IP
  • Optional feeder 1DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
  • Scan modePhoto, text, photo/text, optimised for OCR
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP
  • Scan typeCCD colour and b/w
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi

Fax system

  • One touch dial1000.0 numbers
  • Group dial500.0 numbers
  • Modem speed33.6 kbps
  • Abbreviated dial2000.0 numbers
  • Fax memory170.0 MB
  • CompatibilitySuper G3
  • Transmission speed3 seconds or less using JBIG
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission, max 2 fax kits for parallel transmission and reception
  • TypeFaxsystem 12
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
  • Compression methodJBIG, MMR, MR, MH
  • Original formatmax A3
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi), 600 x 600 dpi

Options

  • Other optionsScan extension kit (A), Internet fax kit (A), Card authentication kit (B), Keyboard holder 10, Banner guide 10, UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-51 WLAN card (IEEE802.11/b/g/n), IB-37 WLAN card (IEEE802.11a/b/g/n/ac), NK-7120 Numeric Keyboard (10 keys), DT-730(B) Document tray, cabinet no. 81, HD-15 (320 GB HDD), HD-16 (1 TB HDD)
  • FinisherDF-7100 internal finisher (capacity: 500 sheet A4, stapling max 50 sheet A4), DF-7120 (capacity: 1,000 sheet A4, stapling max 50 sheet A4),, PH-7120 hole punch unit for DF-7100, PH-7C hole punch unit for DF-7120/7140, PH-7C hole punch unit for DF-7120/7140, BF-730 brochure module for DF-7140 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max X sheet A4), DF-7140 (capacity: 4,000 sheet A4, stapling max 65 sheet A4), MT- 730 (B) Multi Tray für DF-7140
  • Original platen coverPlaten cover type E (if document processor is not installed)
  • Original feederDP-7150 document processor with automatic reverse function (A6R-A3, capacity: 140 sheet A4, paper weight 35- 160 g/m²), DP-7140 document processor with automatic reverse function (A5R-A3, capacity: 50 sheet A4, paper weight 45-160 g/m²), DP-7160 document processor with simultaneous duplex scanning (A6R-A4, capacity: 320 sheet A4, paper weight 35-220 g/m²), DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
  • Job SeparatorJS-7100 (100 sheet, 52-300 g/m², A6R - SRA3), JS-7110 inner shift tray (250 sheet, 52-300 g/m², A6R - SRA3)
  • Paper feedPF-7140 (2 x 500 sheet universal cassettes [A5R-SRA3]), PF-7150 (2 x 1,500 sheet large capacity cassette [A4]), PF-7120 (3,000 sheet large capacity tray [A4], side deck)

Notes on technical data

  1. for copy, print, scan, fax↩
  2. DIN/ISO 7779/9296↩
  3. depending on the operating status↩
  4. depending on the operating status↩
  5. for copy, print, scan, fax↩
  6. with DP↩
  7. with DP↩
  8. with DP↩
  9. DIN/ISO 7779/9296↩
  10. DIN/ISO 7779/9296↩
  11. optional↩
  12. optional↩
  13. additional memory required for full functionality↩
