P-3523DW

The P-3523DW is a high-performance printer that is ideal for use in busy office environments. Thanks to an impressive printing speed of 35 pages per minute, you can print your documents quickly and efficiently without having to put up with long waiting times. This model also offers a wide range of technical highlights that make it easier to perform your everyday office tasks. These include, for example, the option of double-sided printing, a high paper capacity, a wide range of connectivity options, and support for mobile printing solutions. The perfect companion for when things heat up at the office.
Find a Retailer

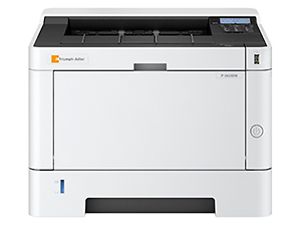

P-3523DW Image

General

  • TypeDesktop
  • Functionprint
  • Print technologyLaser b/w
  • Print formatmax A4
  • Greyscales256
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4
  • Paper output250 sheet A4
  • Printing resolution (min)600 x 600 dpi
  • Printing resolution (max)1,200 x 1,200 dpi (reduced speed)
  • Functionsduplex, Apple AirPrint, quiet mode (half speed mode), PDF/XPS direct printing, LCD with 5 lines, barcode printing, trusted platform modul (TPM), Wi-Fi, Mobile Print (Android/iOS), private printing, etc., printing of e-mails
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • Interfaces10/100/1000BaseTX, USB 2.0, USB host, Wi-Fi, SD-Card Slot
  • EmulationsKPDL 3 (PostScript 3 compatible), XPS, PCL6 (PCL 5c, XL), PRESCRIBE Ilc, PDF 1.7
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 10, Server 2012 R2, Server 2008 R2, Server 2016, Windows 8.1, Mac ex OS 10.9, Server 2019, Linux
  • Print speed (A4, Duplex) B/W17.5 b/w-pages/min.
  • Warm-up time15.0 seconds
  • Paper weights (Universal cassette min)60.0 g/m²
  • Paper weights (Universal cassette max)163.0 g/m²
  • Paper weights (Multi-Bypass min)60.0 g/m²
  • Paper weights (Multi-Bypass max)220.0 g/m²
  • Paper weights (Duplex min)60.0 g/m²
  • Paper weights (Duplex max)163.0 g/m²
  • System memory (RAM)0.512 GB
  • System memory (RAM max)0.512 GB

Dimensions / Weight

Environment

  • Mains voltage220/240 V
  • SafetyCE, GS/TÜV
  • Utility frequency50/60 Hz
  • Power consumption (busy)481.0 W
  • Power consumption (max)1085.0 W
  • Power consumption (standby)6.0 W
  • Power consumption (sleep)0.3 W

Options

  • Other optionsUG-33 ThinPrint® kit, Card authentication kit (B), cabinet no. 78
  • Paper feedmax 2 x PF-1100 (250 sheet universal cassettes [A6R-A4, 60-163 g/m²])

Notes on technical data

  1. optional↩
  2. optional↩
  3. optional↩
  4. depending on the operating status↩
  5. with DP↩
  6. with DP↩
  7. with DP↩
