P-3527w MFP

Finding a reliable assistant, capable of multi-tasking is a game of good luck – unless you decide to go for the P-3527w MFP. It prints and copies with a speed of up to 35 A4 pages/min., scans and sends faxes, and even offers a Wifi interface in addition to its network and USB interfaces. All along the way its intuitive, colour touch screen makes operating errors a thing of the past.
Find a Retailer

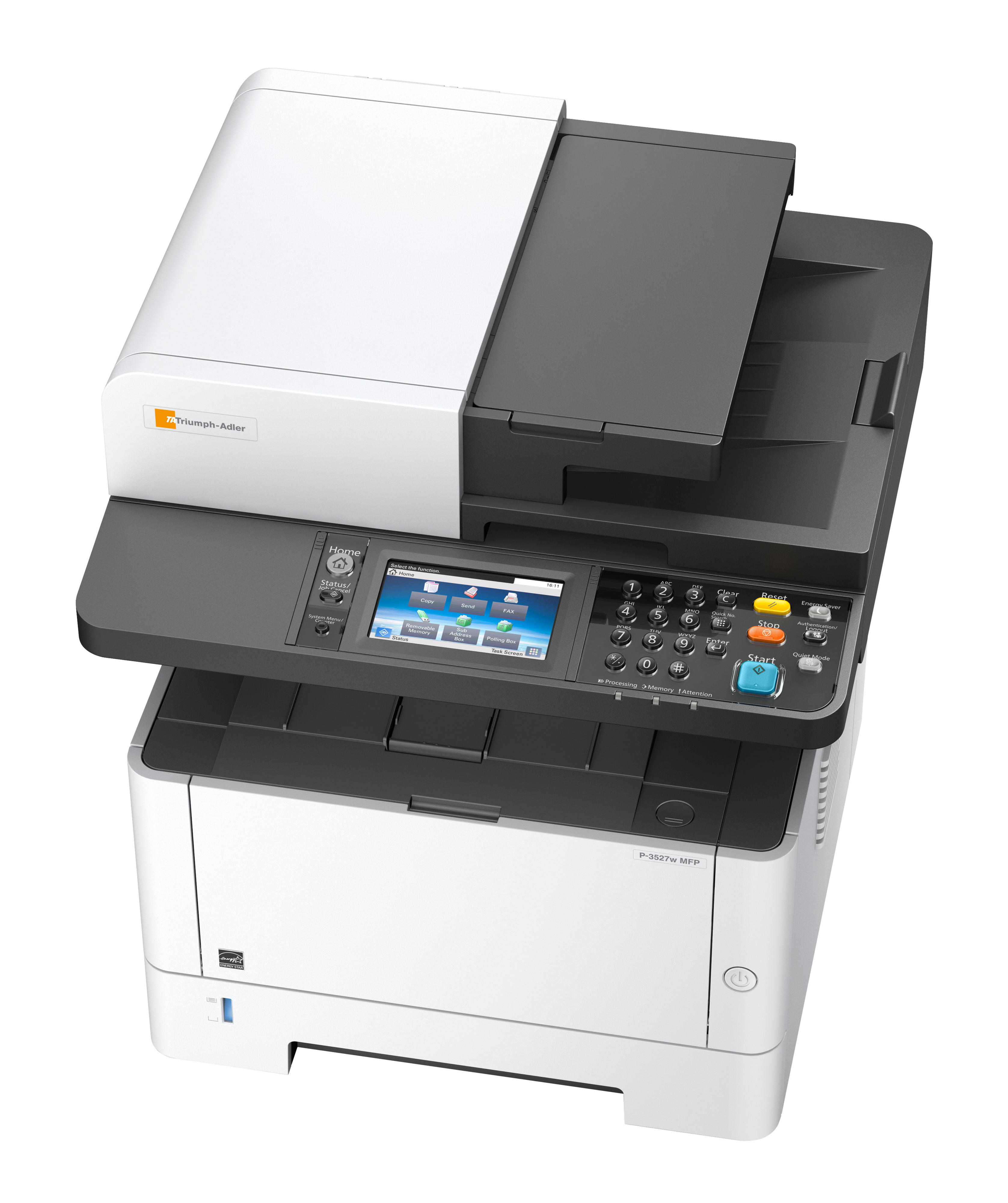

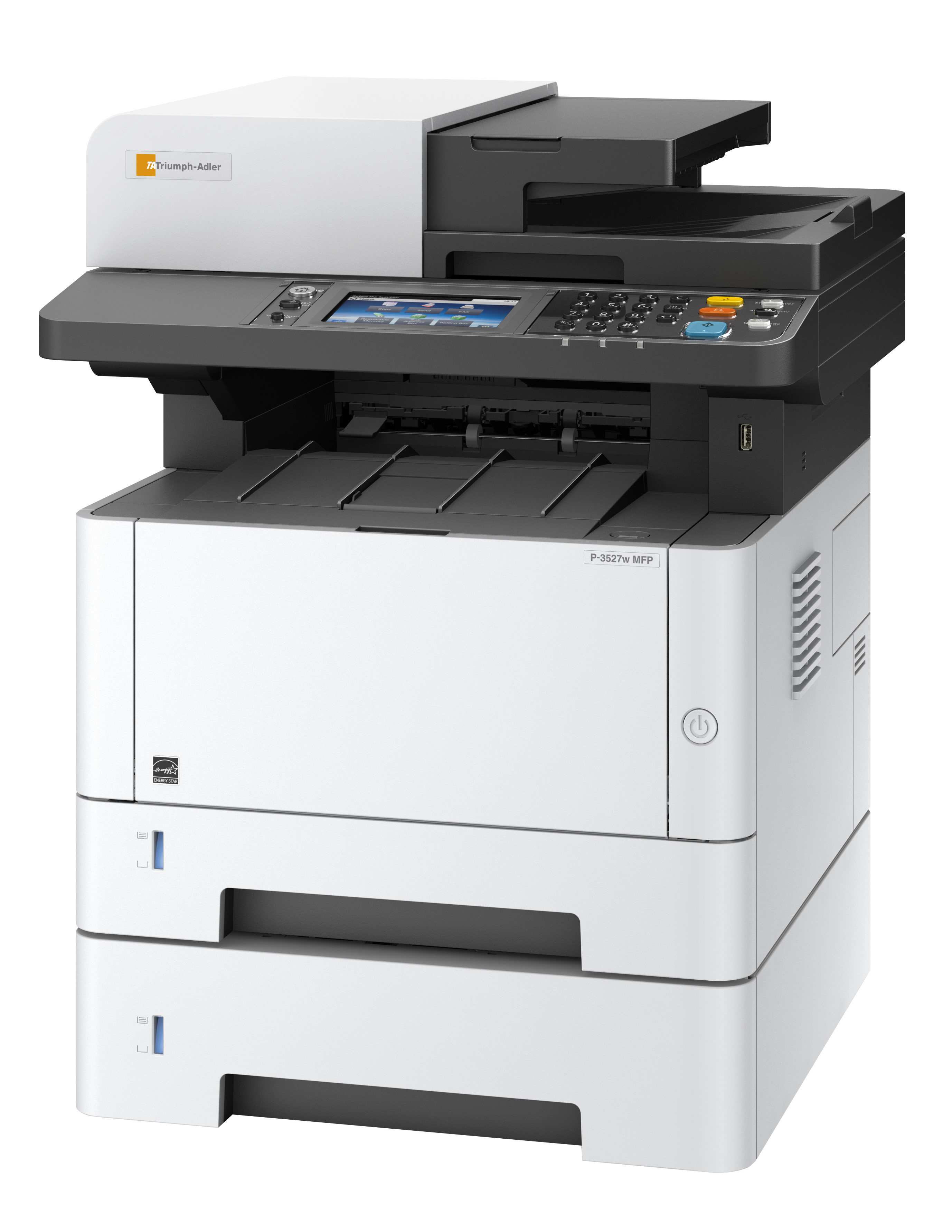

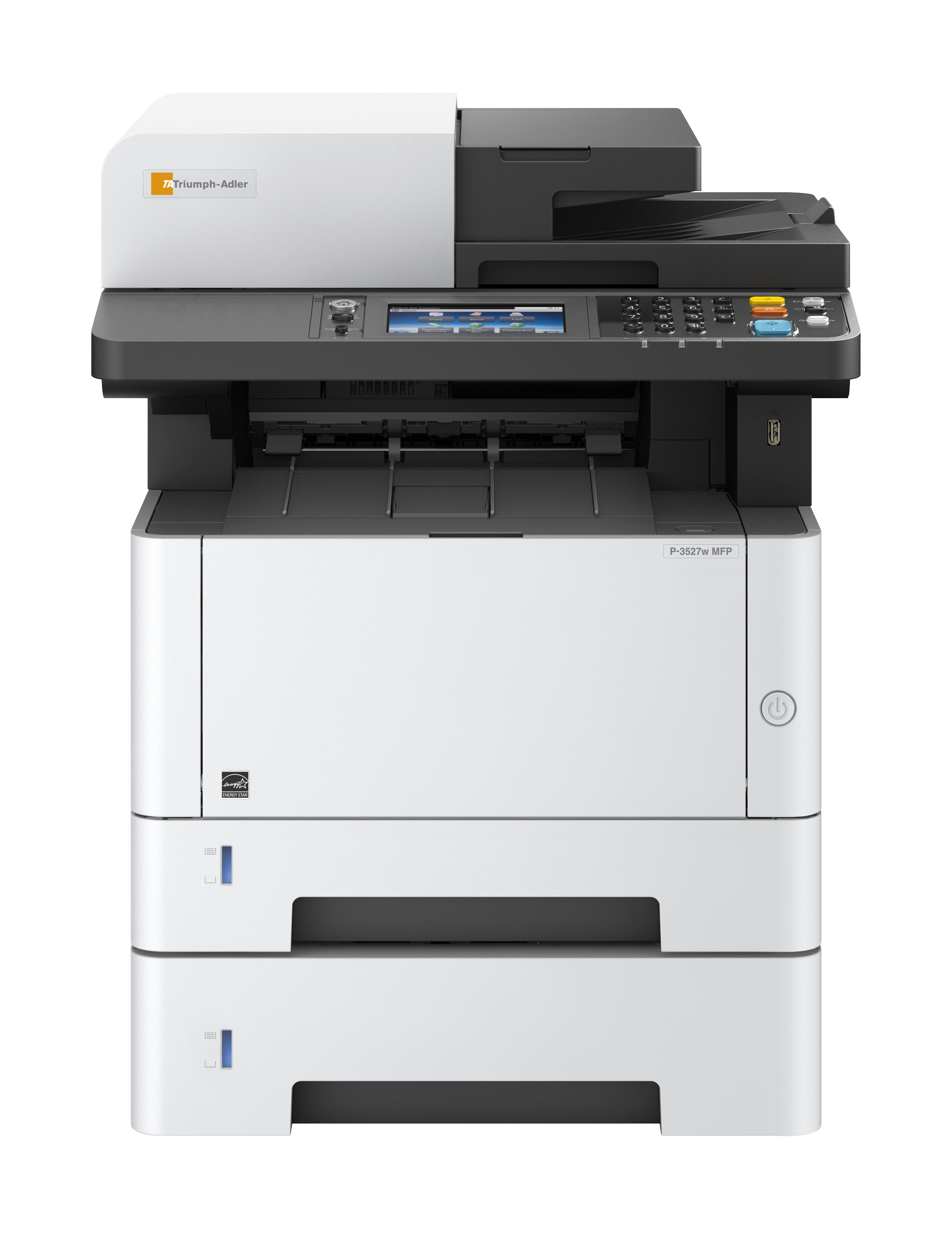

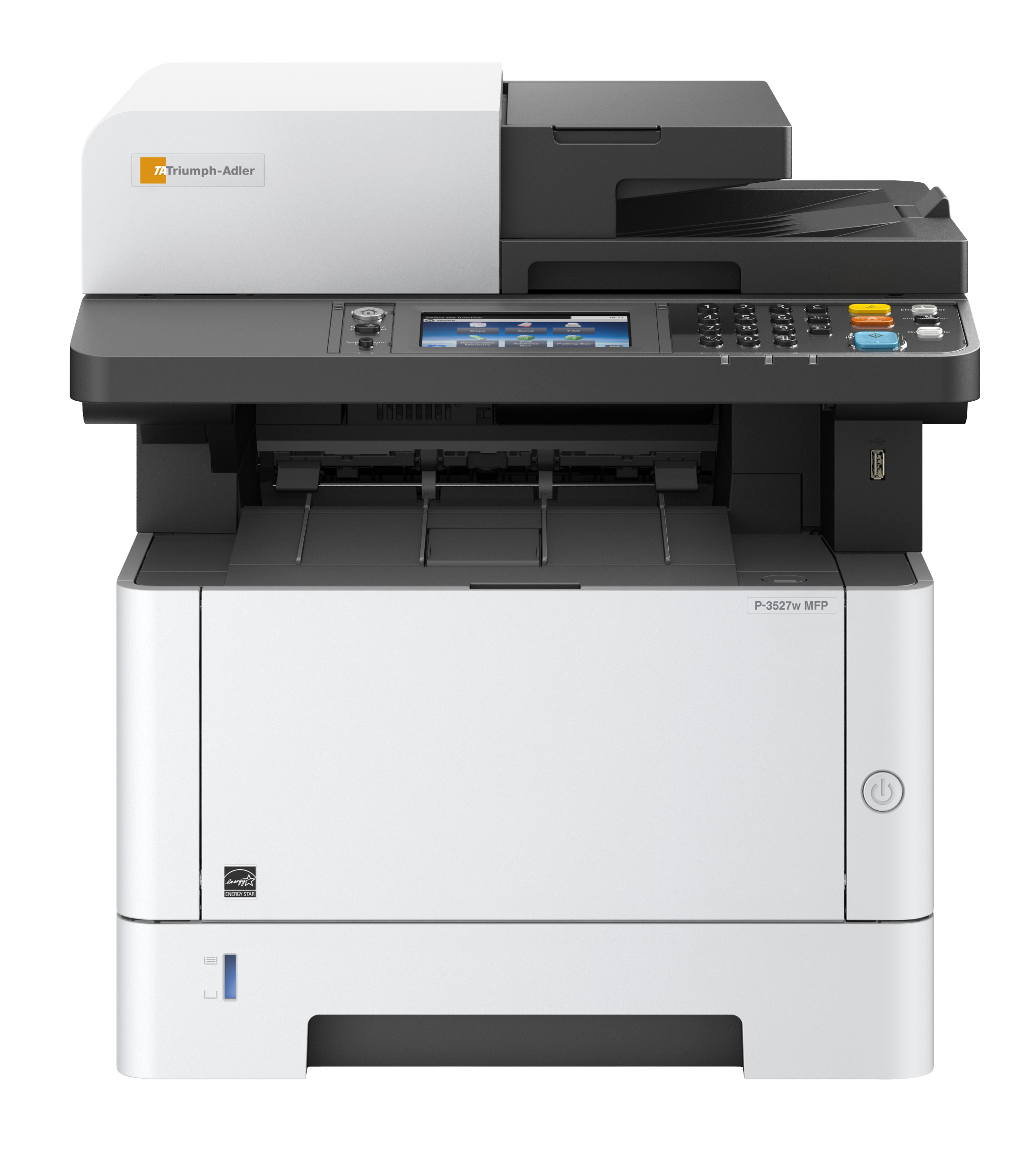

P-3527w MFP Image

General

  • TypeDesktop
  • Functionscan, fax, print, Copy
  • Print technologyLaser colour and b/w
  • Original formatmax A4 from platen glass
  • Original feeder50 sheet A4 (standard), min 140 x 182 mm, max 297 x 432 mm, 45-160 g/m² (simplex), 50-120 g/m² (duplex)
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 250 sheet
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper output150 sheet A4
  • FunctionsTouch screen, duplex, job programs, ID card copy, continuous scan, skip blank pages, job reservation, N-up, quiet mode (half speed mode), 100 management codes
  • Warm-up time20.0 seconds
  • Paper weights (Universal cassette min)163.0 g/m²
  • Paper weights (Universal cassette max)60.0 g/m²
  • Paper weights (Multi-Bypass min)220.0 g/m²
  • Paper weights (Multi-Bypass max)60.0 g/m²
  • Paper weights (Duplex min)163.0 g/m²
  • Paper weights (Duplex max)60.0 g/m²
  • System memory (RAM)512.0 GB
  • System memory (RAM max)1536.0 GB
  • Continuous copying (min)1.0
  • Continuous copying (max)999.0
  • Zoom (min)25.0 %
  • Zoom (max)400.0 %
  • Zoom (step)1.0 %

Dimensions / Weight

Environment

  • Noise level (standby)47.2 dB(A)
  • Mains voltage220/240 V
  • SafetyCE, GS/TÜV
  • Power consumption (busy)661.0 W
  • Power consumption (max)982.0 W
  • Power consumption (standby)21.0 W
  • Power consumption (sleep)1.0 W

Printing system

  • Print resolution (max)1,200 x 1,200 dpi
  • Print resolution (min)600 x 600 dpi
  • EmulationsKPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, PCL6 (PCL 5c, XL), Line Printer, IBM Proprinter, Epson LQ-850, PDF 1.7, XPS, Open XPS
  • FunctionsUSB direct printing, printing of e-mails, PDF direct printing, private printing, barcode printing, WSD-/Internet printing, Mobile Print (Android/iOS), Google Cloud Print, Wi-Fi Direct®
  • Operating systemsWindows Vista, Windows 7, Windows 8.1, Windows 10, Server 2012 R2, Windows XP, Server 2008 R2, Windows 8, Linux
  • TypeIntegrated within the system
  • ProcessorCortex-A9, 800 MHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host, Wi-Fi
  • Print formatA6R-A4
  • Network protocolsTCP/IP, Net BEUI

Scanning system

  • Scan formatmax A4
  • File typesJPEG, TIFF, PDF, high compression PDF, PDF/A-1, XPS
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2012 R2
  • Scan modePhoto, text, photo/text, optimised for OCR
  • FunctionsScan to SMB, scan to FTP, scan to USB, TWAIN scan, SMTP authentication, WIA scan, scan to e-mail, LDAP
  • Scan typeCIS colour and b/w
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi

Fax system

  • One touch dial100.0 numbers
  • Group dial50.0 numbers
  • Modem speed33.6 kbps
  • Abbreviated dial200.0 numbers
  • Fax memory3.5 MB
  • CompatibilitySuper G3
  • Transmission speed3 seconds or less using JBIG
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission
  • Operating systemsWindows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Server 2003, Server 2008, Server 2012 R2
  • Compression methodJBIG, MMR, MH, MR
  • Original formatmax A4
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)

Options

  • Other optionsCard authentication kit (B), UG-33 ThinPrint® kit, cabinet no. 78
  • Paper feedmax 2 x PF-1100 (250 sheet universal cassettes [A6R-A4, 60-163 g/m²])

Notes on technical data

  1. depending on the operating status↩
  2. with DP↩
  3. with DP↩
  4. with DP↩
  5. DIN/ISO 7779/9296↩
  6. optional↩
