P-4020 MFP

Don’t wait until lots of paperwork piles on your desk! Let the P-4020 MFP do away with it for you! It prints, copies and scans very efficiently with up to 40 A4 pages/minute, thereby quickly reducing your workload. Yet, it is extremely compact and quiet during operation. You wish to access your MFP from your smartphone or tablet? No problem at all with the free-of-charge Mobile Print App.

Find a Retailer

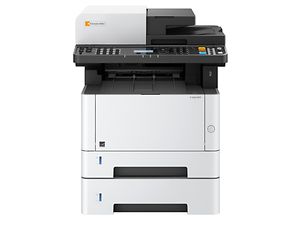

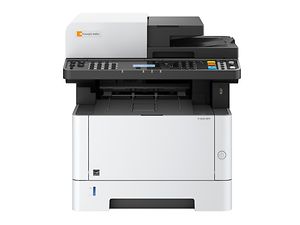

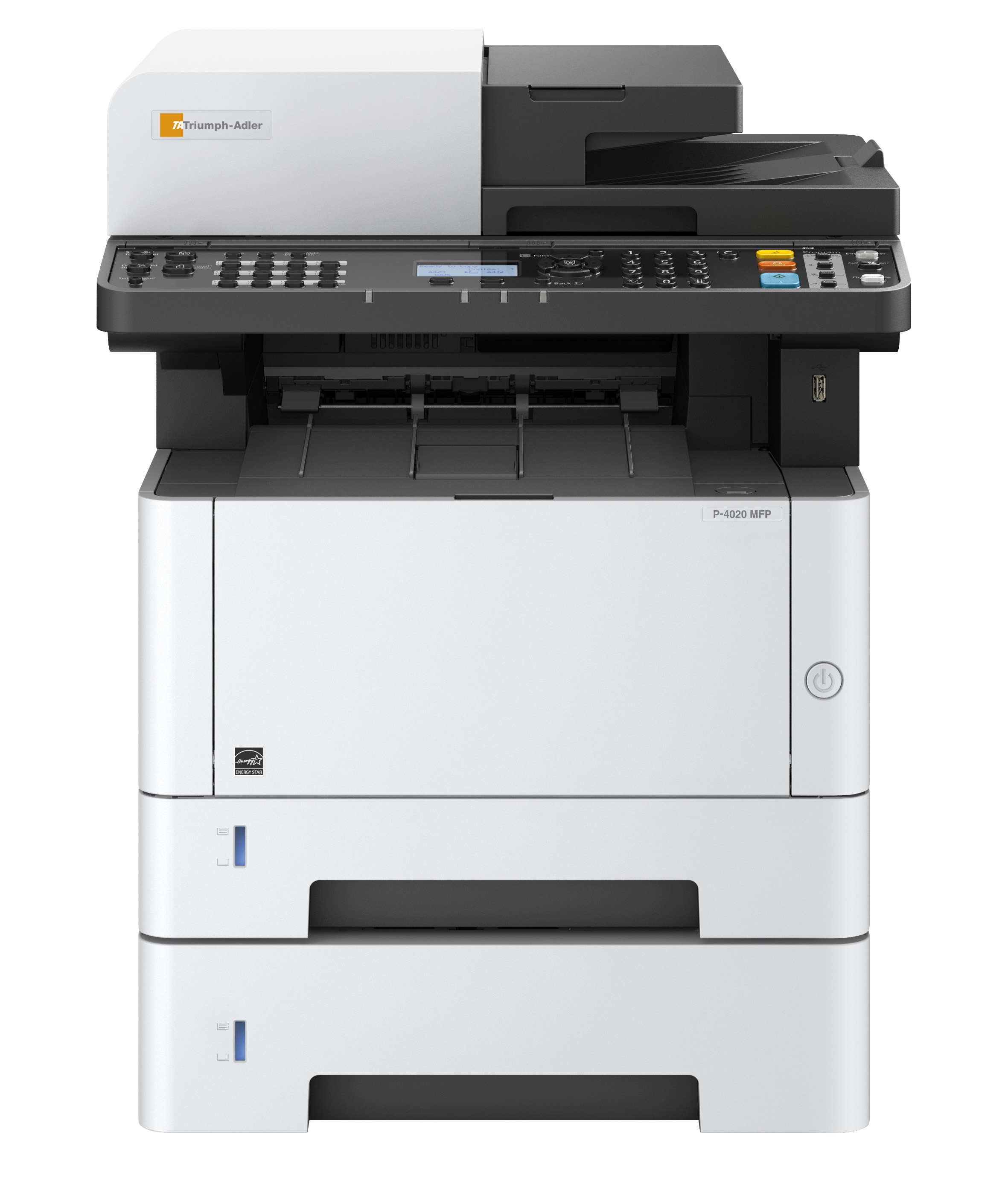

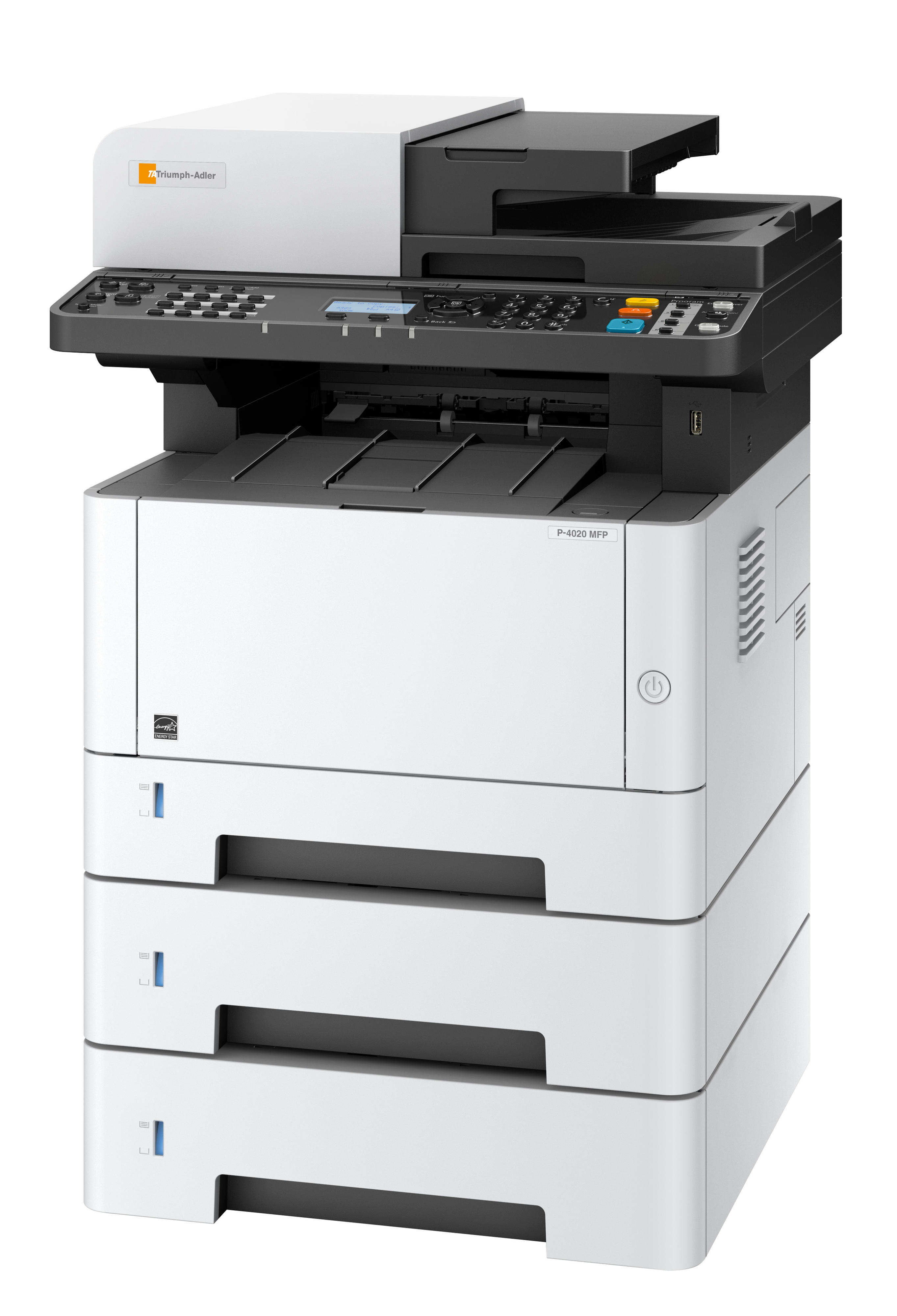

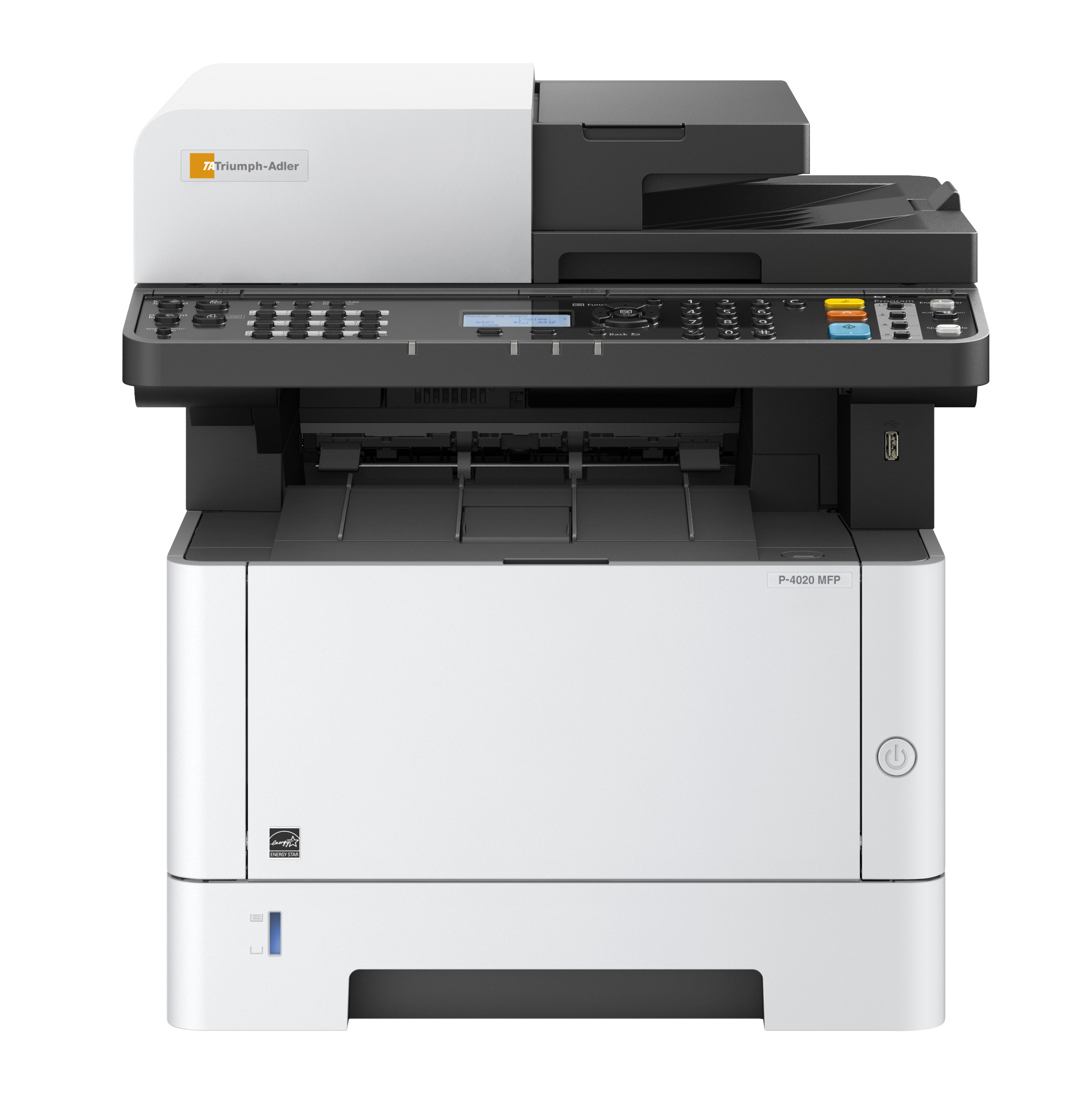

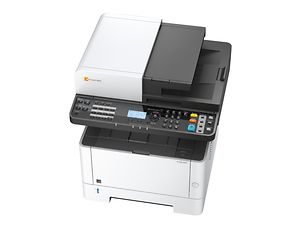

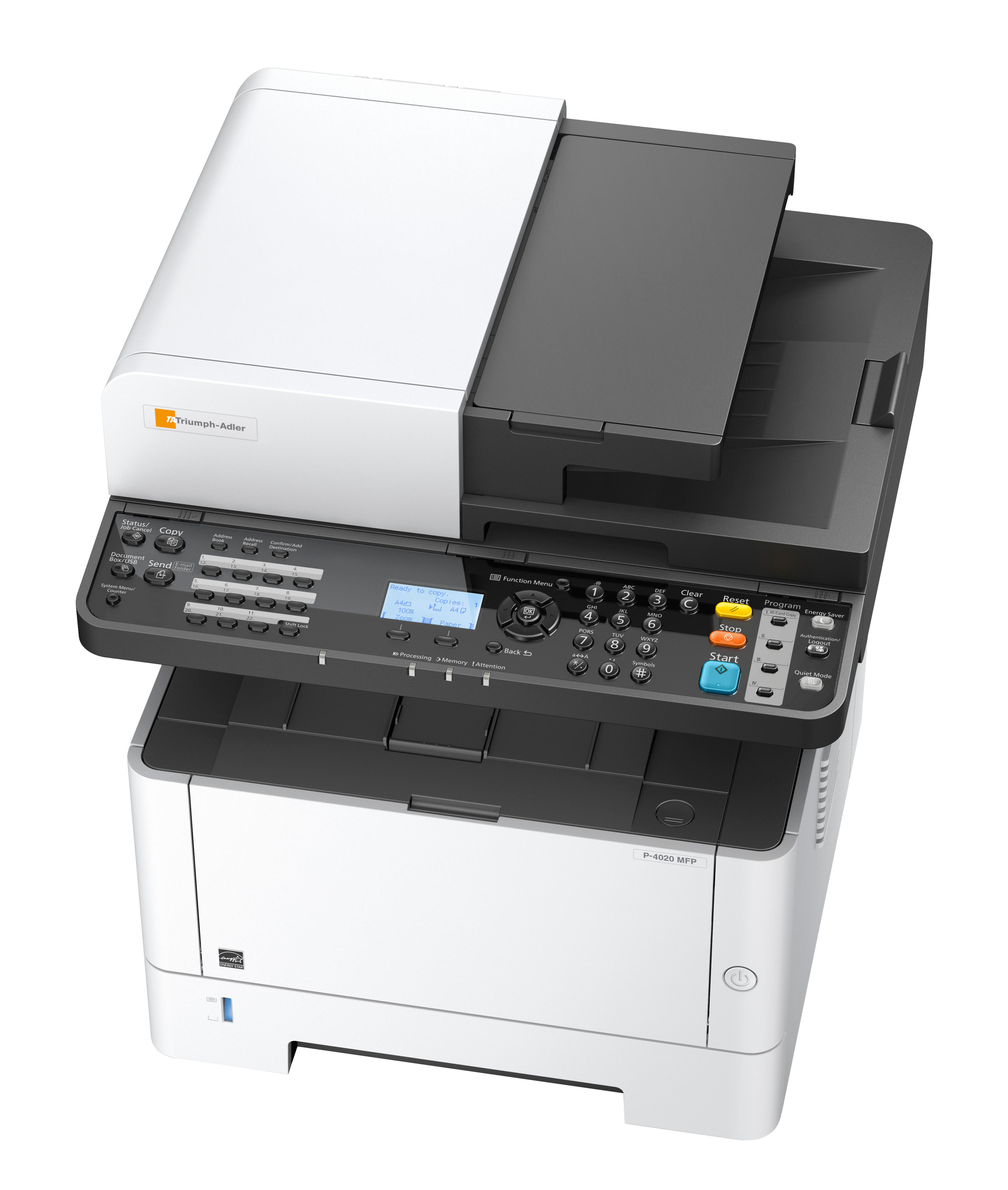

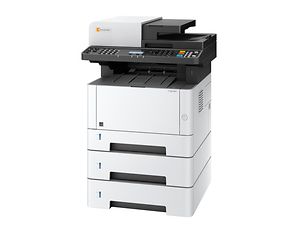

P-4020 MFP Image

General

  • TypeDesktop
  • FunctionCopy, print, scan
  • Print technologyLaser b/w
  • Original formatmax A4 from platen glass
  • Original feeder50 sheet A4 (standard, A6R-A4), 50-160 g/m² (with simultaneous duplex scanning)
  • Print speed (A4, Simplex) B/W40 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W40 b/w-pages/min.
  • Print speed (A4, Duplex) B/W20 b/w-pages/min.
  • Copy speed (A4, Duplex) B/W20 b/w-pages/min.
  • 1st page (printing, b/w)6.4 seconds
  • 1st page (copying, b/w)6.4 seconds
  • Warm-up time17 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 250 sheet
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)163 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)163 g/m²
  • Paper output150 sheet A4
  • System memory (RAM)0.5 GB
  • System memory (RAM max)1.5 GB
  • Continuous copying (min)1
  • Continuous copying (max)999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • Functionsduplex, job reservation, job programs, ID card copy, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), 100 management codes

Dimensions / Weight

  • Dimensions (height)437 mm
  • Dimensions (width)417 mm
  • Dimensions (depth)412 mm
  • Weight19 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)990 W
  • Power consumption (busy)661 W
  • Power consumption (standby)21 W
  • Power consumption (sleep)1 W
  • Power consumption (TEC)0.54 kwh/week
  • Noise level (busy, b/w)48.3 dB(A)
  • Noise level (standby)undefined dB(A)
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A4
  • Print resolution (min)600 x 600 dpi
  • Print resolution (max)1,200 x 1,200 dpi
  • ProcessorCortex-A9, 800 MHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host, SD-Card Slot
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Linux, Mac ex OS 10.5
  • EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, Line Printer, IBM Proprinter, Epson LQ-850, PDF 1.7, XPS, Open XPS
  • FunctionsUSB direct printing, printing of e-mails, PDF direct printing, private printing, barcode printing, WSD-/Internet printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print

Scanning system

  • Scan typeCIS colour and b/w
  • Scan formatmax A4
  • Scan speed (Feeder 1, simplex, colour)23 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)40 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)16 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)32 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, high compression PDF, PDF/A-1a, XPS
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2003, Server 2008 R2, Server 2012 R2
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Options

  • Paper feedmax 2 x PF-1100 (250 sheet universal cassettes [A6R-A4, 60-163 g/m²])
  • Other optionsCard authentication kit (B), UG-33 ThinPrint® kit, cabinet no. 78

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
  3. not measurable (DIN/ISO 7779/9296)↩
