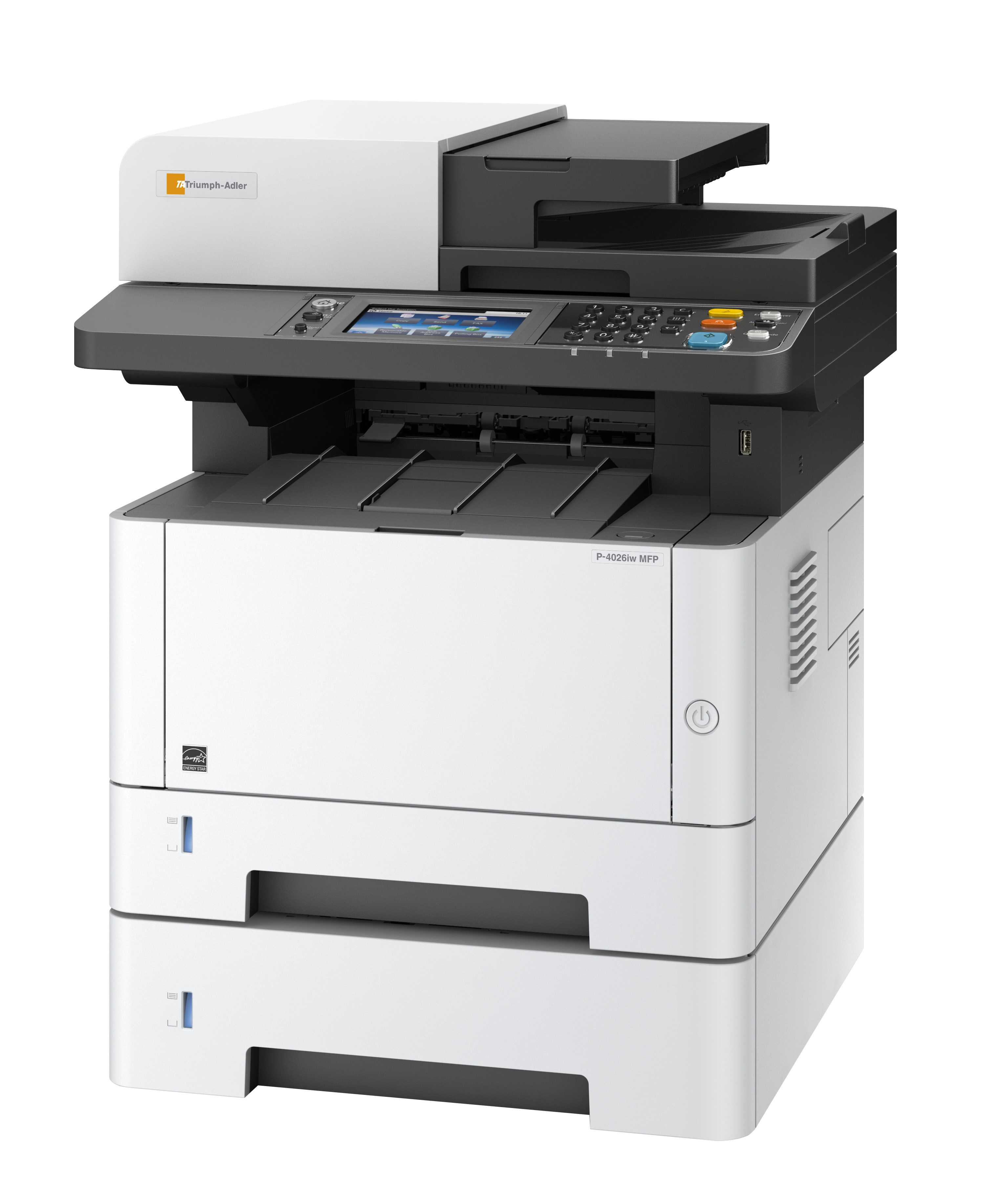

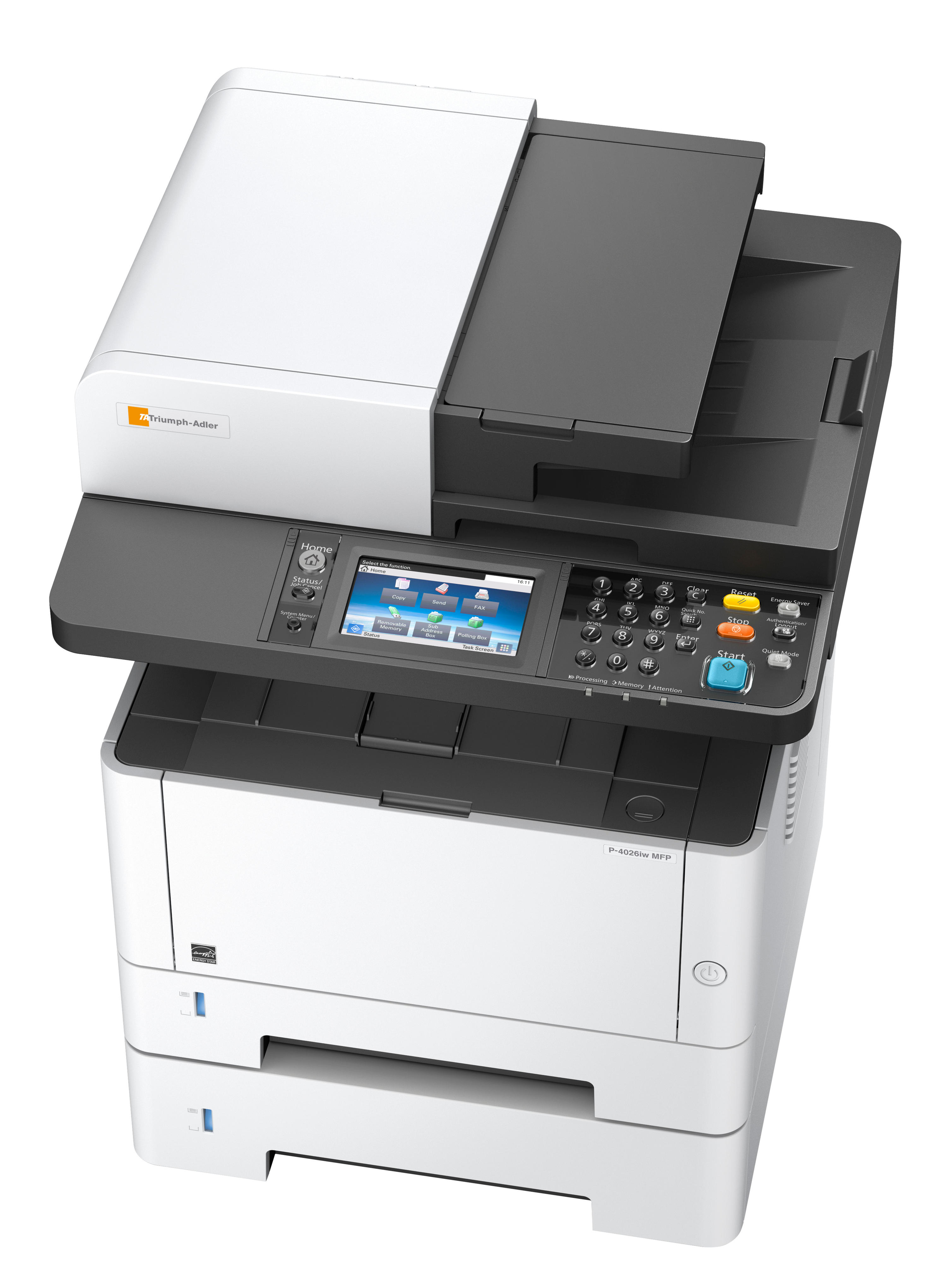

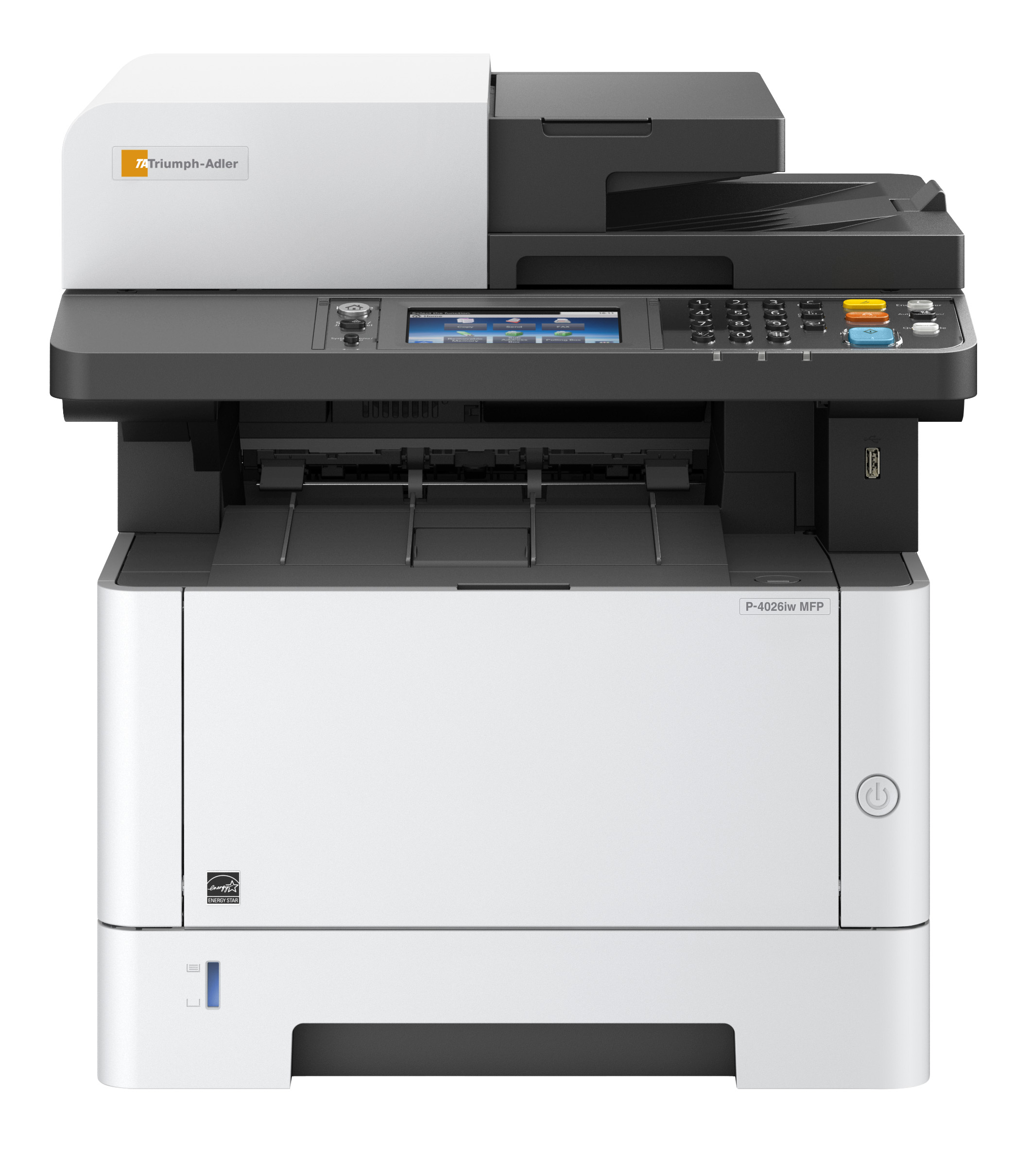

P-4026iw MFP

With the P-4026iw MFP you are always in control of any situation in the office, because its intuitive touch screen offers you perfect guidance through all the versatile functions – as if by magic! This MFP prints and copies with up to 40 A4 pages/min, scans in colour and b/w and even send faxes – very efficiently and at the highest of qualities at that! It offers various interfaces for network, Wifi and USB, as well as a HyPAS interface for the seamless integration of software applications and solutions.

Find a Retailer
P-4026iw MFP Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, fax
  • Print technologyLaser b/w
  • Original formatmax A4 from platen glass
  • Original feeder50 sheet A4 (standard, A6R-A4), 50-160 g/m² (with simultaneous duplex scanning)
  • Print speed (A4, Simplex) B/W40 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W40 b/w-pages/min.
  • Print speed (A4, Duplex) B/W20 b/w-pages/min.
  • Copy speed (A4, Duplex) B/W20 b/w-pages/min.
  • 1st page (printing, b/w)6.4 seconds
  • 1st page (copying, b/w)6.4 seconds
  • Warm-up time20 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 250 sheet
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)163 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)163 g/m²
  • Paper output150 sheet A4
  • System memory (RAM)0.5 GB
  • System memory (RAM max)1.5 GB
  • Continuous copying (min)1
  • Continuous copying (max)999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsTouch screen (4.3 inch), duplex, job reservation, job programs, ID card copy, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), 100 management codes

Dimensions / Weight

  • Dimensions (height)437 mm
  • Dimensions (width)417 mm
  • Dimensions (depth)412 mm
  • Weight19 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)990 W
  • Power consumption (busy)661 W
  • Power consumption (standby)21 W
  • Power consumption (sleep)1 W
  • Power consumption (TEC)0.54 kwh/week
  • Noise level (busy, b/w)48.3 dB(A)
  • Noise level (standby)undefined dB(A)
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A4
  • Print resolution (min)600 x 600 dpi
  • Print resolution (max)1,200 x 1,200 dpi
  • ProcessorCortex-A9, 800 MHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host, SD-Card Slot, Wi-Fi
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Linux, Mac ex OS 10.5
  • EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, Line Printer, IBM Proprinter, Epson LQ-850, PDF 1.7, XPS, Open XPS
  • FunctionsUSB direct printing, printing of e-mails, PDF direct printing, private printing, barcode printing, WSD-/Internet printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi Direct®

Scanning system

  • Scan typeCIS colour and b/w
  • Scan formatmax A4
  • Scan speed (Feeder 1, simplex, colour)23 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)40 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)16 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)32 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, high compression PDF, PDF/A-1a, XPS
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2003, Server 2008 R2, Server 2012 R2
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Fax system

  • CompatibilitySuper G3
  • Original formatmax A4
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodJBIG, MMR, MR, MH
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)
  • Fax memory3.5 MB
  • Abbreviated dial200 numbers
  • One touch dial100 numbers
  • Group dial50 numbers
  • Operating systemsWindows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2003, Server 2008 R2, Server 2012 R2
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission

Options

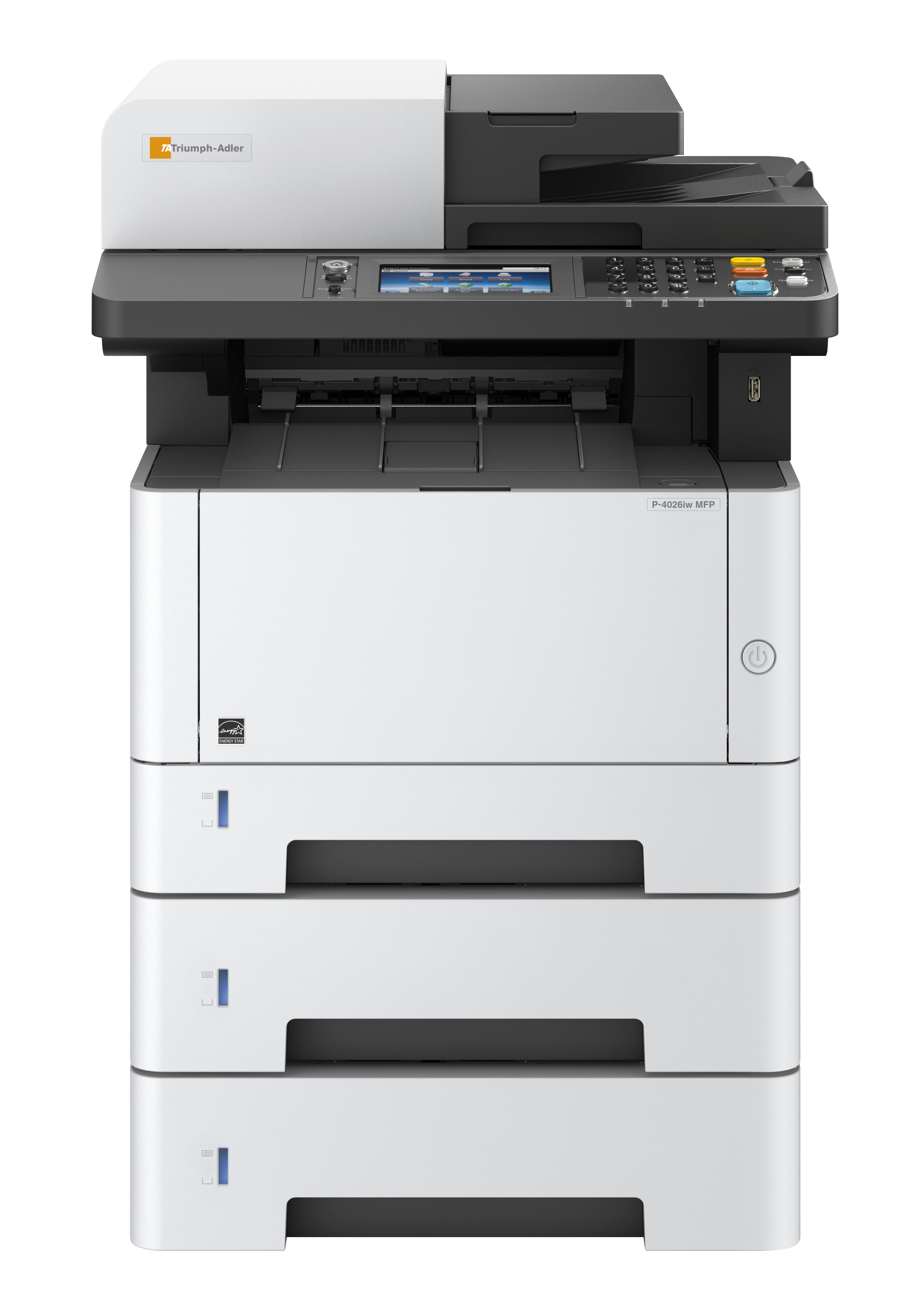

  • Paper feedmax 2 x PF-1100 (250 sheet universal cassettes [A6R-A4, 60-163 g/m²])
  • Other optionsCard authentication kit (B), UG-33 ThinPrint® kit, cabinet no. 78

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
  3. not measurable (DIN/ISO 7779/9296)↩
