P-4536i MFP

P-4536i MFP – that’s quality black on white! Apart from its high print speeds of up to 45 A4 pages/min, this multitasking professional offers an extremely user-friendly operation, an extensive range of ancillaries as well as top productivity. In other words: it incorporates everything that features high on a user’s wishlist. Via its large colour touch display you have direct access to numerous practical functions and optional apps and software solutions for the digitization of your documents.
Find a Retailer

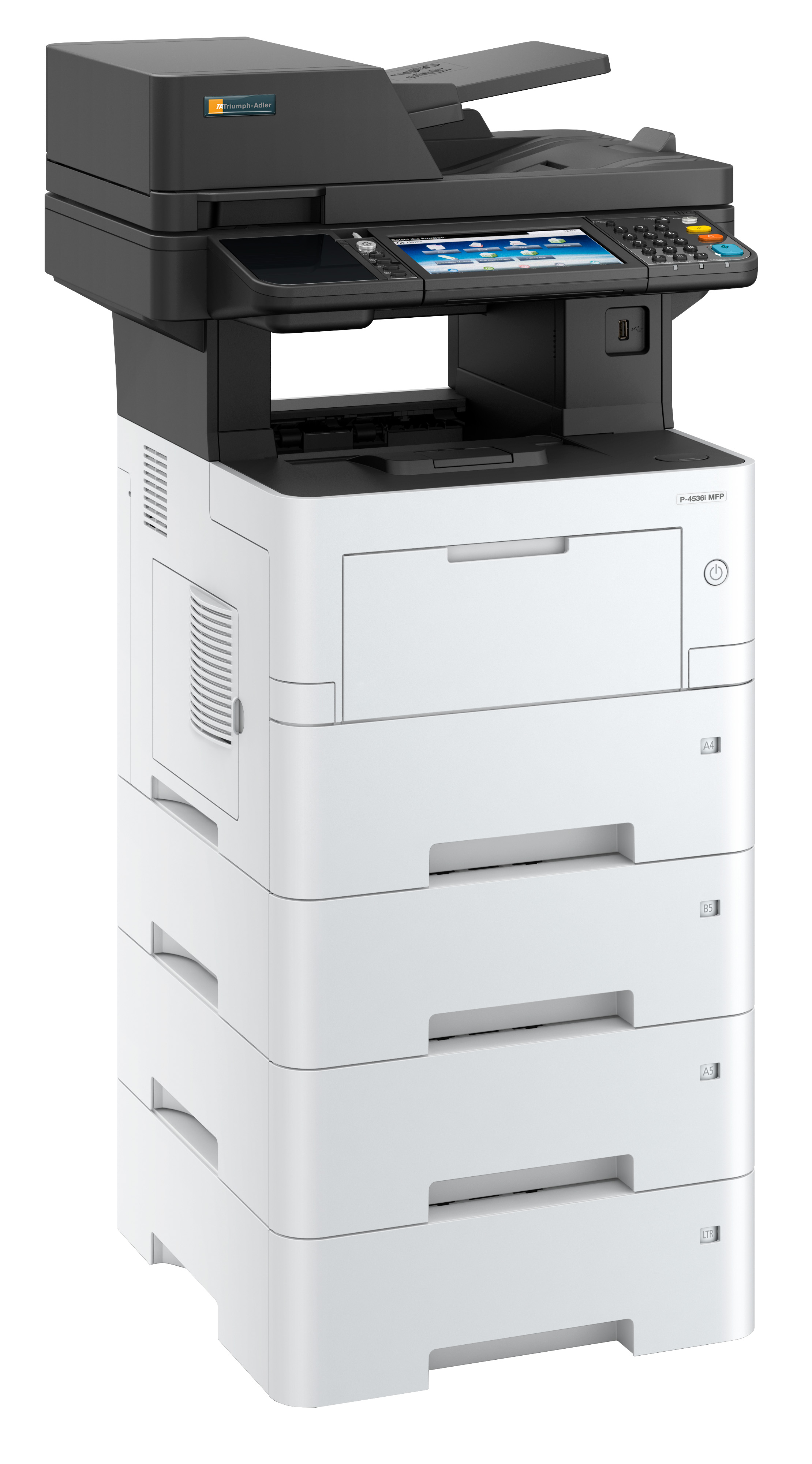

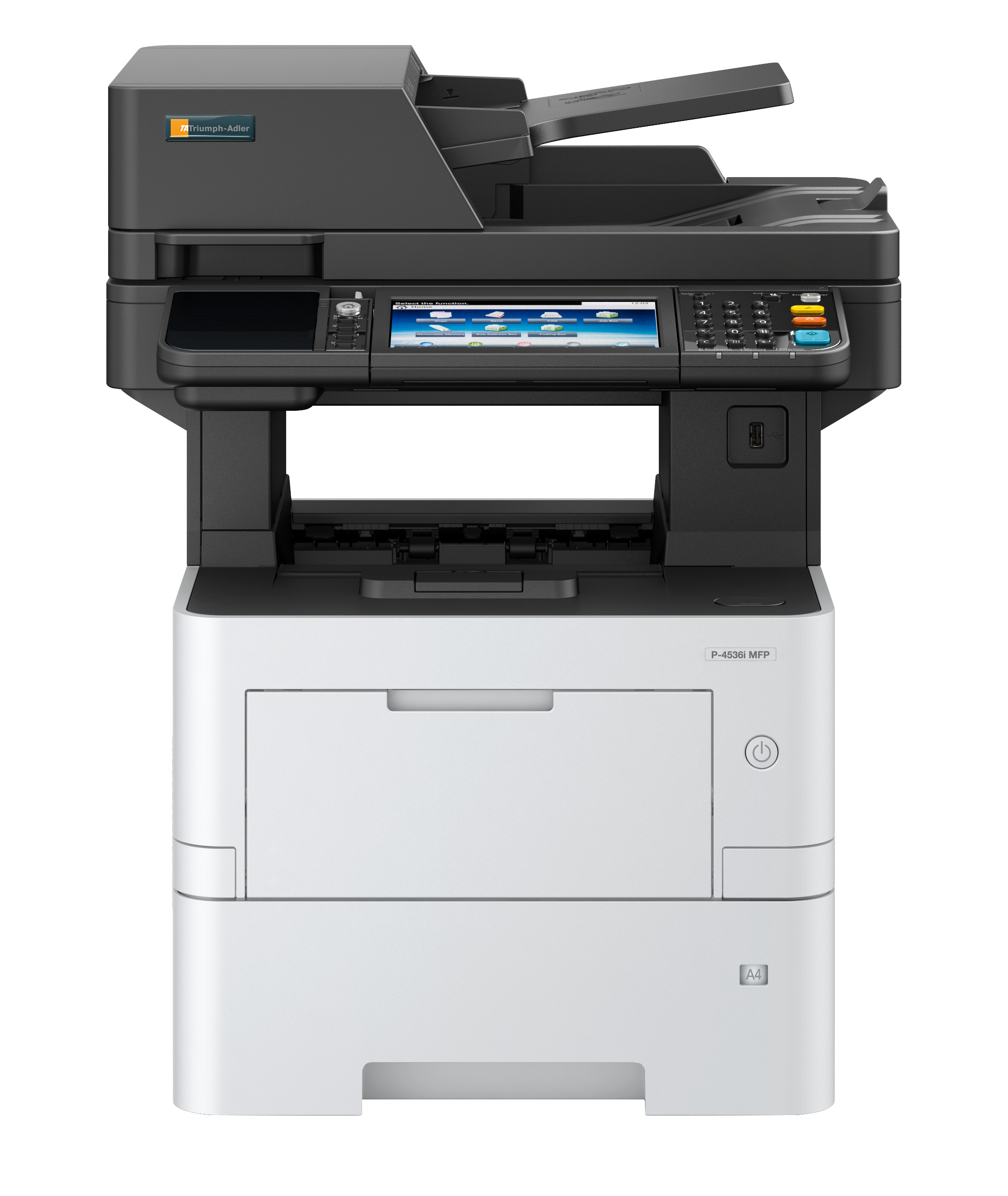

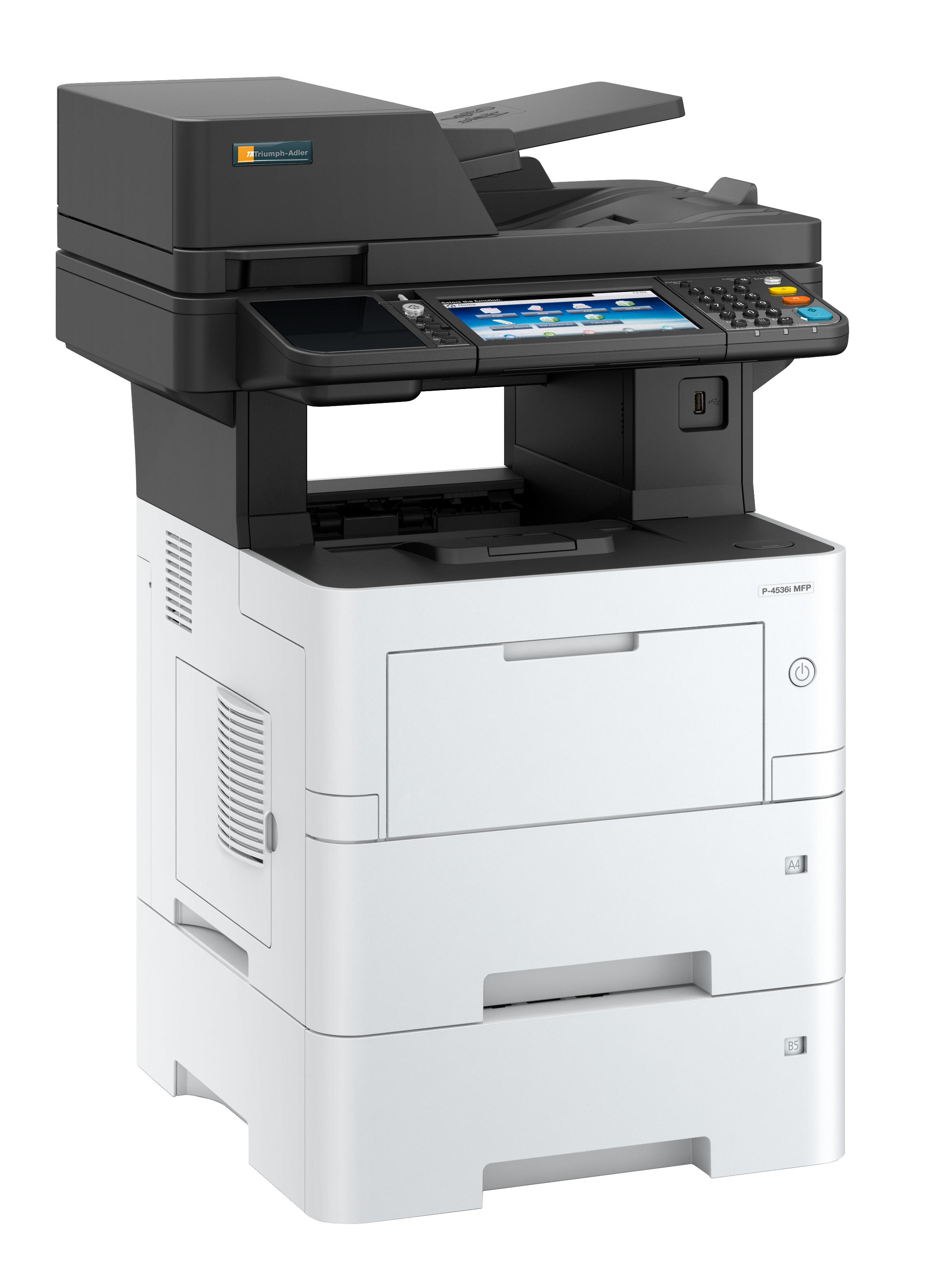

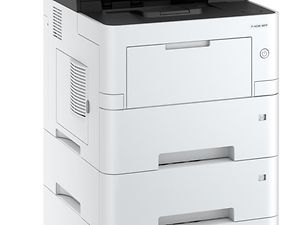

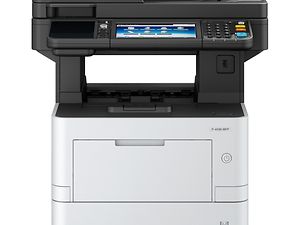

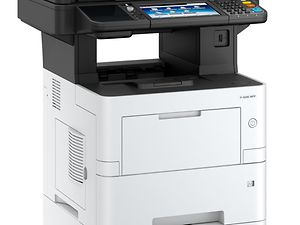

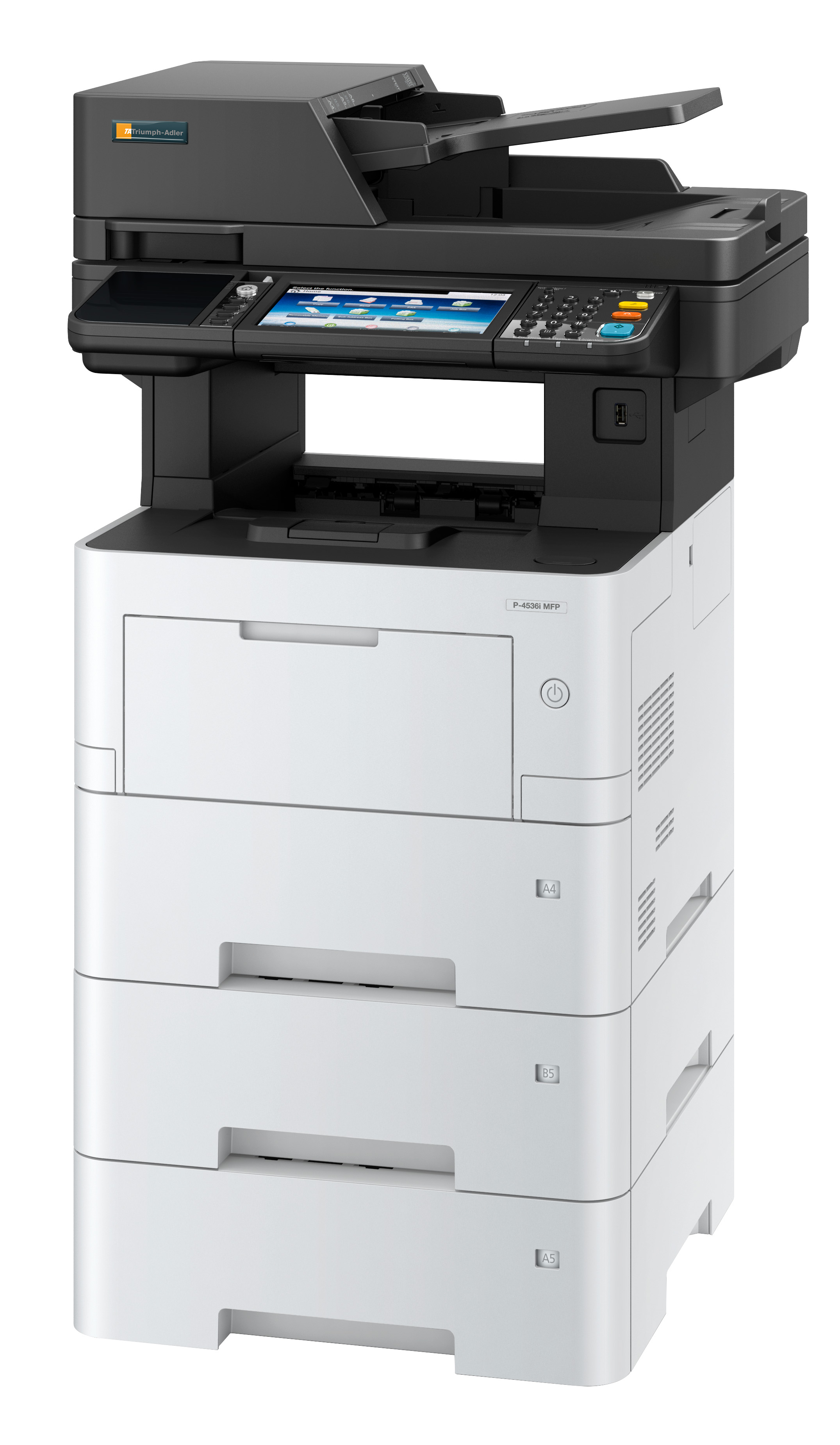

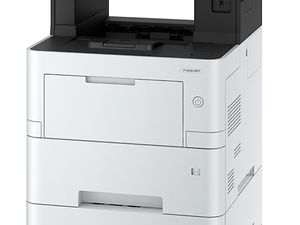

P-4536i MFP Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, fax
  • Print technologyLaser b/w
  • Original formatmax A4 from platen glass
  • Original feeder75 sheet document processor with automatic reverse function, A6R-A4, 50-120 g/m² (standard)
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet, 1 x 500 sheet
  • Paper feed (1st cassette types)A5R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
  • System memory (Optional)32/128 GB SSD
  • FunctionsColour touch screen (7 inch), Colour touch screen (7 inch), duplex, job reservation, ID card copy, Scan once - Copy Many, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), 100 management codes
  • Print speed (A4, Duplex) B/W22.5 b/w-pages/min.
  • Warm-up time21.0 seconds
  • Paper weights (Universal cassette min)60.0 g/m²
  • Paper weights (Universal cassette max)120.0 g/m²
  • Paper weights (Multi-Bypass min)60.0 g/m²
  • Paper weights (Multi-Bypass max)220.0 g/m²
  • Paper weights (Duplex min)60.0 g/m²
  • Paper weights (Duplex max)120.0 g/m²
  • System memory (RAM)1.0 GB
  • System memory (RAM max)3.0 GB
  • Continuous copying (min)1.0
  • Continuous copying (max)999.0
  • Zoom (min)25.0 %
  • Zoom (max)400.0 %
  • Zoom (step)1.0 %

Dimensions / Weight

Environment

  • Noise level (busy, b/w)52.0 dB(A)
  • Noise level (standby)26.2 dB(A)
  • Mains voltage220/240 V
  • Utility frequency50 Hz
  • Power consumption (busy)630.0 W
  • Power consumption (max)1276.0 W
  • Power consumption (standby)50.0 W
  • Power consumption (sleep)0.5 W

Printing system

  • Print resolution (max)1,200 x 1,200 dpi
  • EmulationsIBM Proprinter, Epson LQ-850, XPS
  • FunctionsUSB direct printing, printing of e-mails, PDF direct printing, private printing, barcode printing, WSD-/Internet printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi
  • Operating systemsWindows 8, Windows 8.1, Server 2008 R2, Server 2012 R2, Server 2016, Novell NetWare, Linux, Mac ex OS 10.5, Mac ex OS 10.5
  • TypeIntegrated within the system
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host
  • Print formatA6R-A4
  • Network protocolsTCP/IP, Net BEUI

Scanning system

  • Scan speed (Feeder 1, duplex, b/w)26.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)60.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)17.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, colour)40.0 DIN-A4-image pages/min. in 300 dpi
  • Scan formatmax A4
  • File typesTIFF, JPEG, PDF, PDF/A-1a, PDF/A, PDF/A-1b, PDF/A-2a, PDF/A-2b, PDF/A-2u, high compression PDF, encrypted PDF, XPS, OpenXPS, MS Office/text-searchable PDF
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Server 2003, Server 2008 R2, Server 2012 R2, Server 2016
  • Scan modePhoto, text, photo/text, optimised for OCR
  • FunctionsScan to SMB, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication
  • Scan typeCCD colour and b/w
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi

Fax system

  • One touch dial100.0 numbers
  • Group dial50.0 numbers
  • Modem speed33.6 kbps
  • Abbreviated dial200.0 numbers
  • Fax memory8.0 MB
  • Fax memory (image)3.5 MB
  • CompatibilitySuper G3
  • Transmission speed3 seconds or less using JBIG
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission
  • TypeIntegrated within the system
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Server 2008 R2, Server 2012 R2, Server 2016
  • Compression methodJBIG, MMR, MR, MH
  • Original formatmax A4
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)

Options

  • Other optionsData security kit (E), Data security kit (E), Scan extension kit (A), Card authentication kit (B), Card reader holder (10), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-7 SSD (128 GB), cabinet no. 79 (high), cabinet no. 80 (low)
  • Paper feedmax 4 x PF-3110 (500 sheet universal cassettes (A5R-A4, 60-120 g/m²])

Notes on technical data

  1. depending on the operating status↩
  2. with DP↩
  3. with DP↩
  4. with DP↩
  5. DIN/ISO 7779/9296↩
  6. DIN/ISO 7779/9296↩
  7. optional↩
  8. optional↩
  9. optional↩
  10. optional↩
  11. When using HD-6 or HD-7, the Data Security Kit can be activated free of charge.↩
  12. When using HD-6 or HD-7, the Data Security Kit can be activated free of charge.↩
  13. additional memory required for full functionality↩
