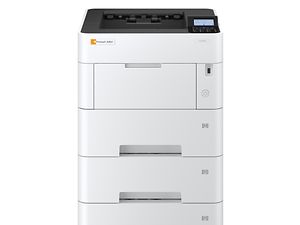

P-5032DN

The P-5032DN takes it easy: with an output speed of 50 pages/min it is a real high performer and very reliable at that! This printer is no doubt the right choice for fast-paced offices. And should you wish it to work more silently from time to time, just activate its Quiet Mode. Speaking of quality the P-5032DN does not makes any compromises either. With a print resolution of up to real 1,200 x 1,200 dpi it literally does a really fine job!

Find a Retailer

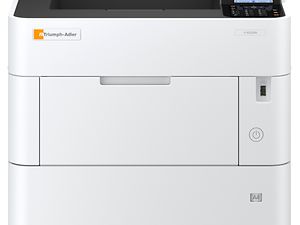

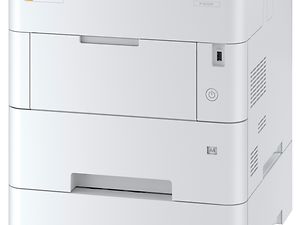

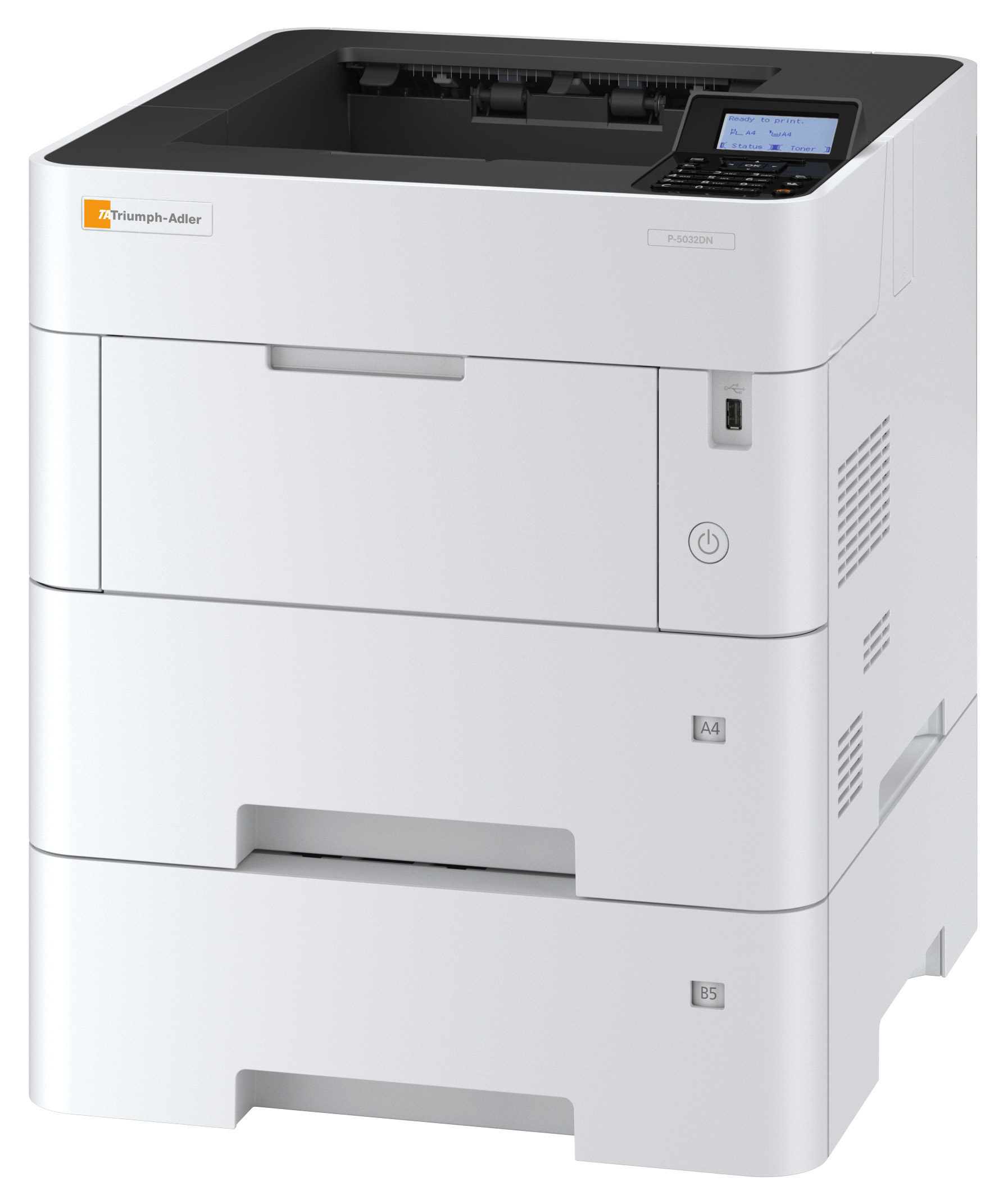

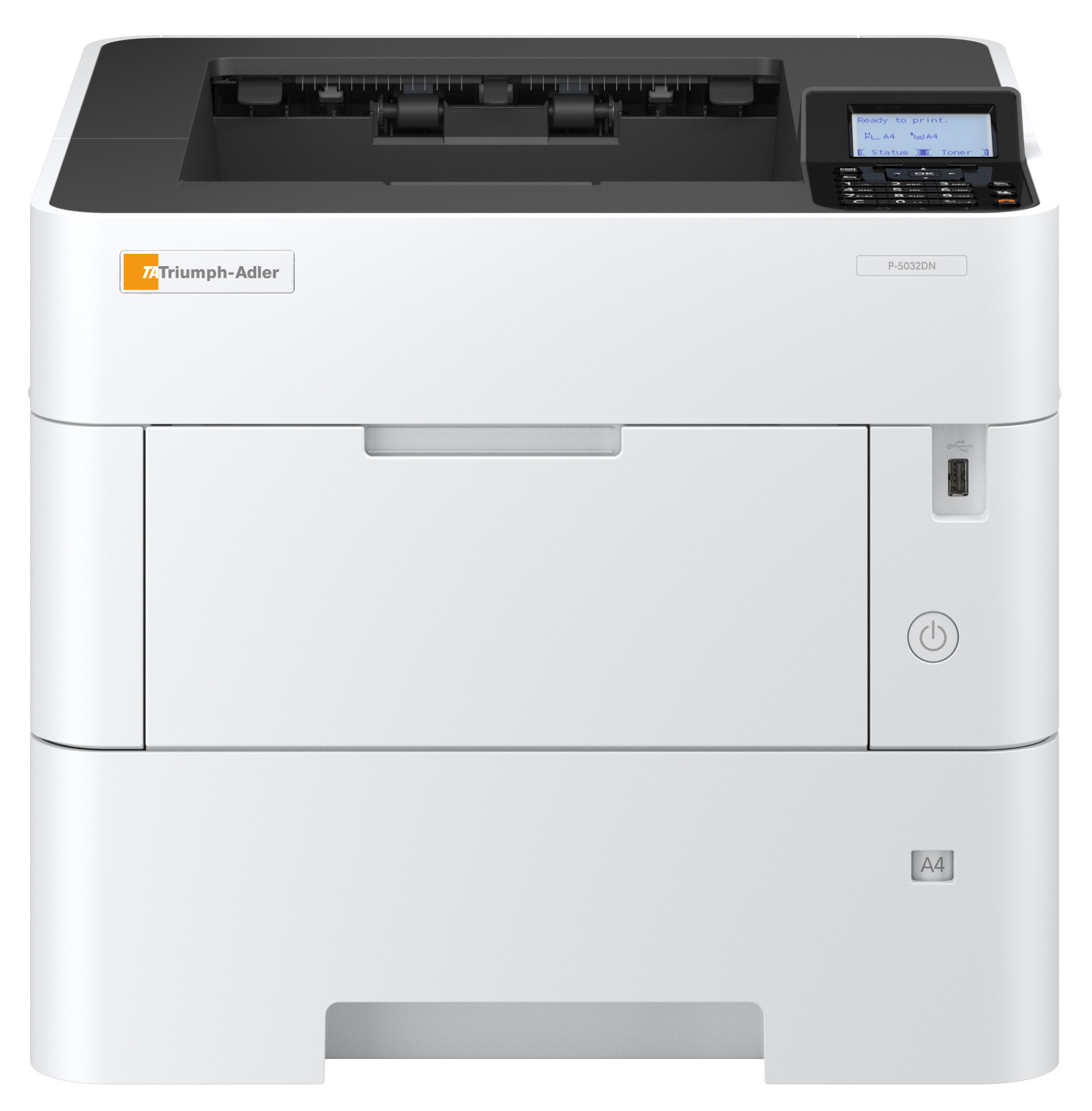

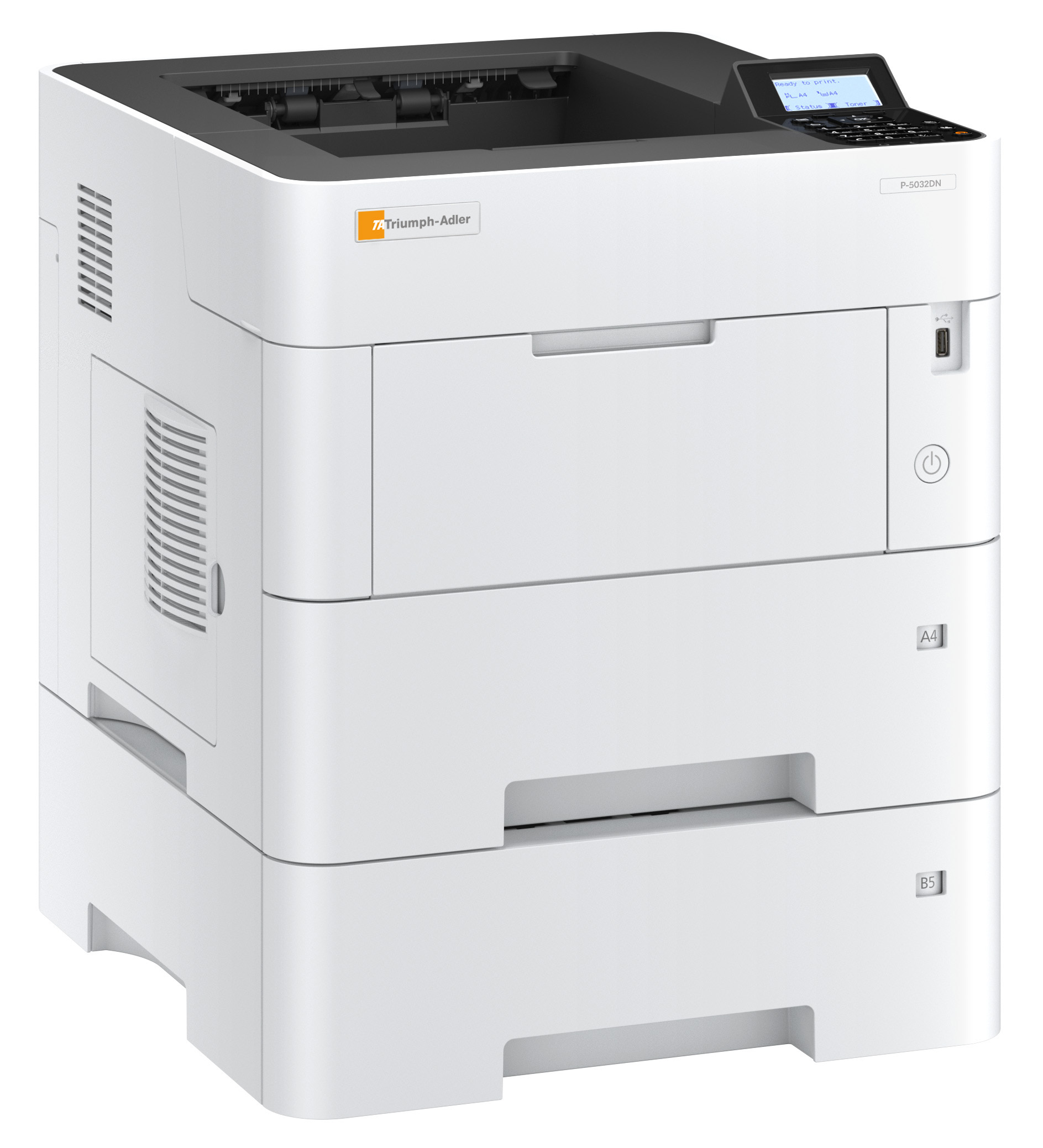

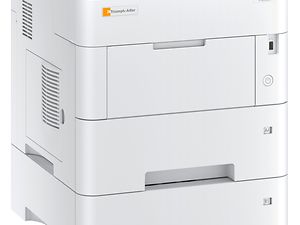

P-5032DN Image

General

  • TypeDesktop
  • Functionprint
  • Print technologyLaser b/w
  • Print formatmax A4
  • Print speed (A4, Simplex) B/W50 b/w-pages/min.
  • Print speed (A4, Duplex) B/W35 b/w-pages/min.
  • 1st page (printing, b/w)5.4 seconds
  • Warm-up time20 seconds
  • Printing resolution (max)1,200 x 1,200 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4, 216 × 356 mm -70 × 139.7 mm, banner: 915 mm length
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)120 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)120 g/m²
  • Paper output500 sheet A4
  • System memory (RAM)0.5 GB
  • System memory (RAM max)2.5 GB
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2), SD-Card Slot
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019, Linux, Mac ex OS 10.9
  • EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, Line Printer, IBM Proprinter, Epson LQ-850, XPS, Open XPS
  • FunctionsUSB direct printing, PDF direct printing, printing of e-mails, private printing, quiet mode (half speed mode), barcode printing, banner print (max 915 mm) from multi-bypass, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi Direct®

Dimensions / Weight

  • Dimensions (height)343 mm
  • Dimensions (width)390 mm
  • Dimensions (depth)416 mm
  • Weight15.3 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)1222 W
  • Power consumption (busy)636 W
  • Power consumption (standby)11 W
  • Power consumption (sleep)0.5 W
  • Power consumption (TEC)0.67 kwh/week
  • Noise level (busy, b/w)54.5 dB(A)
  • Noise level (standby)undefined dB(A)
  • SafetyGS/TÜV, CE

Options

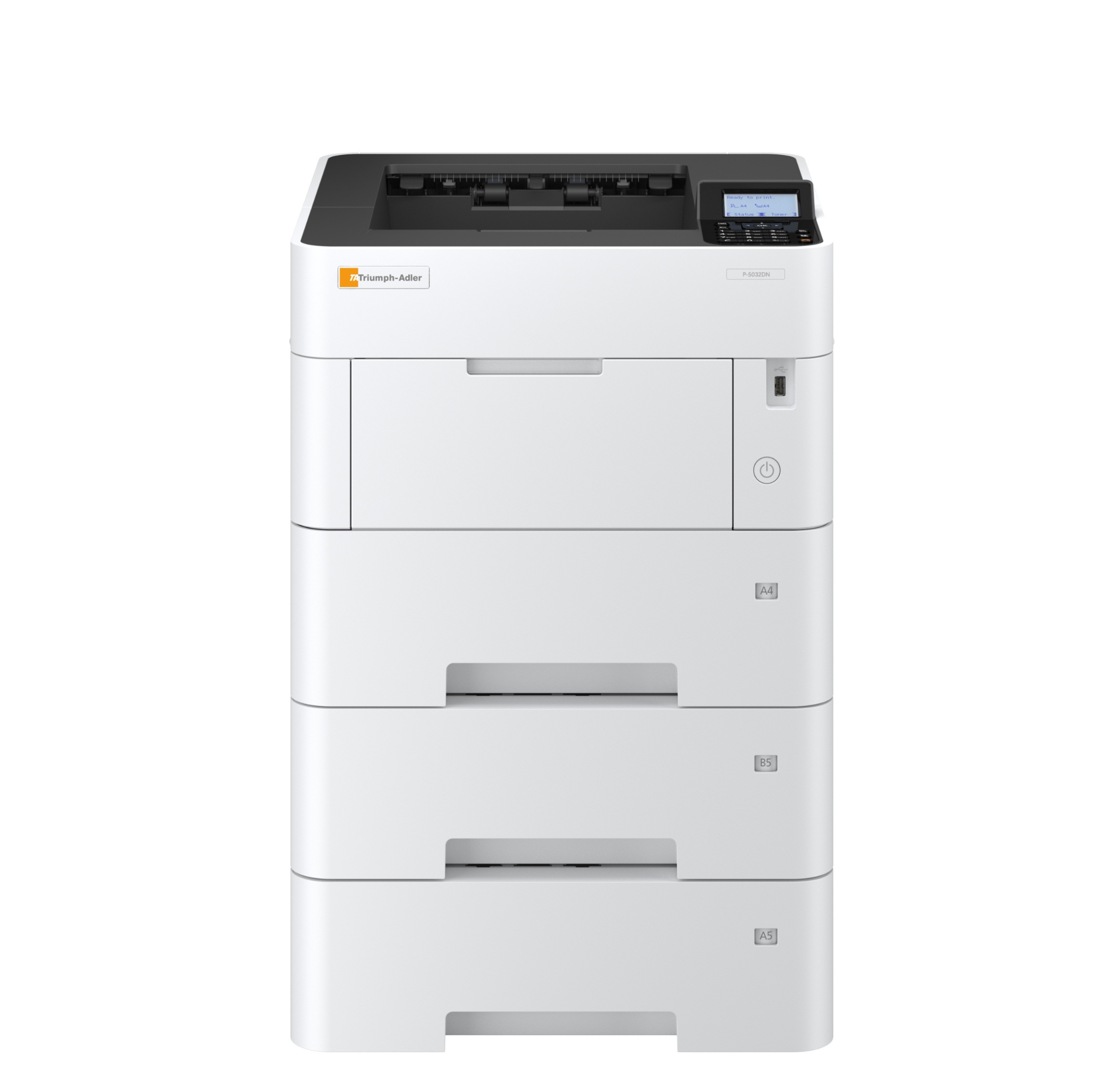

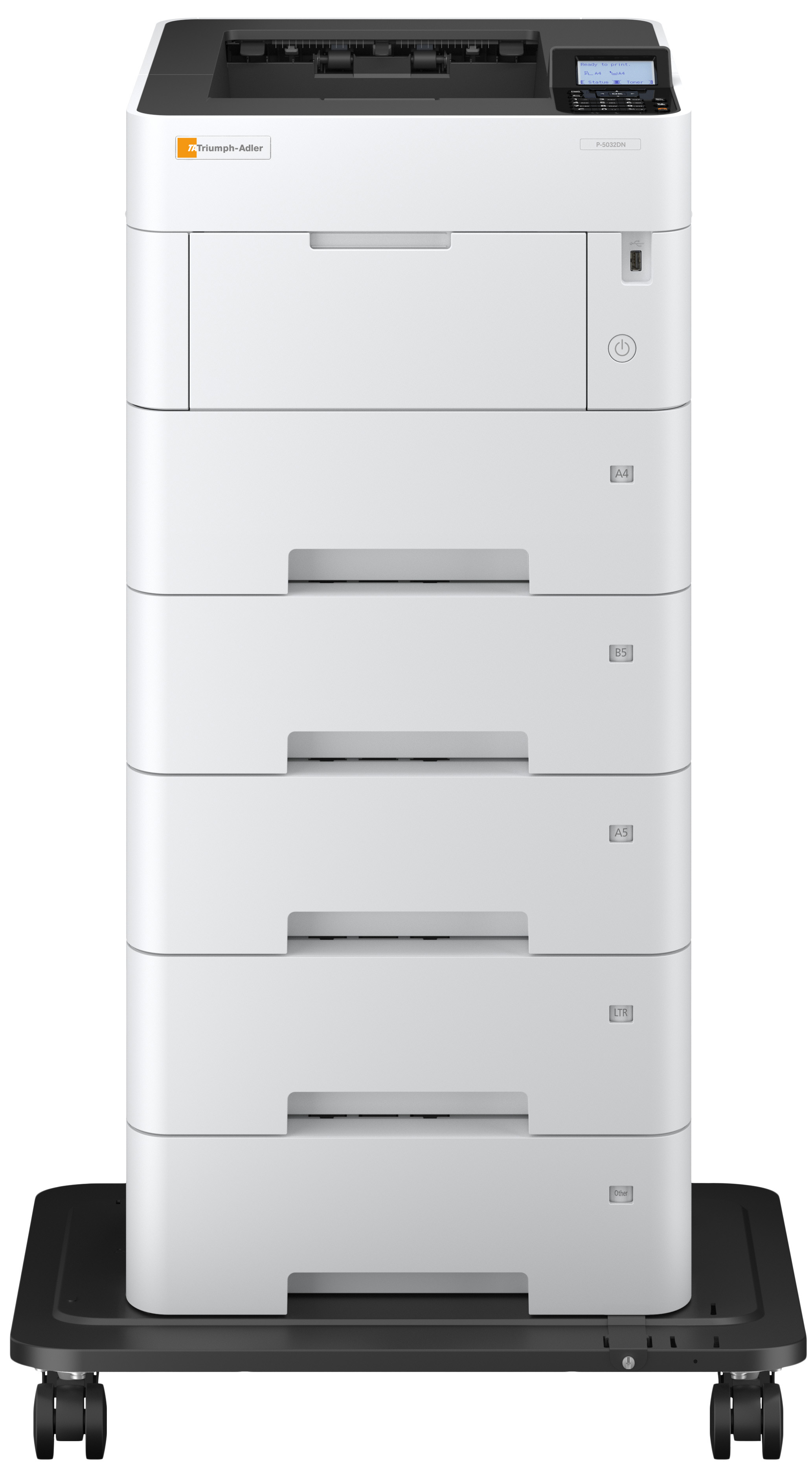

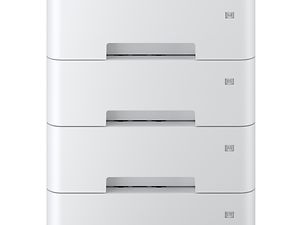

  • Paper feedmax 4 x PF-3110 (500 sheet universal cassettes [A5R-A4, 60-120 g/m²]), max 1 x PF-3100 (2,000 sheet large capacity tray [A5R-A4, 60-220g/m²]), PB-325 (Attachment Kit is required for PF-3100)
  • Other optionsmax 1 x PT-320 (1 x 250 sheet output tray), Data security kit (E), Card authentication kit (B), UG-33 ThinPrint® kit, IB-32 B IEEE1284 parallel, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), cabinet no. 79 (high), cabinet no. 80 (low), caster kit CA-3100

Notes on technical data

  1. depending on the operating status
  2. depending on the operating status
  3. optional
  4. not measurable (DIN/ISO 7779/9296)
  5. When using HD-6 or HD-7, the Data Security Kit can be activated free of charge.
