P-5536i MFP

A high print quality combined with print speeds of up to 55 A4 pages/min make the P-5536i MFP the perfect system for your team, even if the print volumes are exceedingly high. The latest in security an mobility features, an integrated HyPASTM interface as well as practical ancillaries such as the optional Scan Extension Kit for the creation of text-searchable PDF files turn this multifunctional into a very powerful allrounder.

Find a Retailer

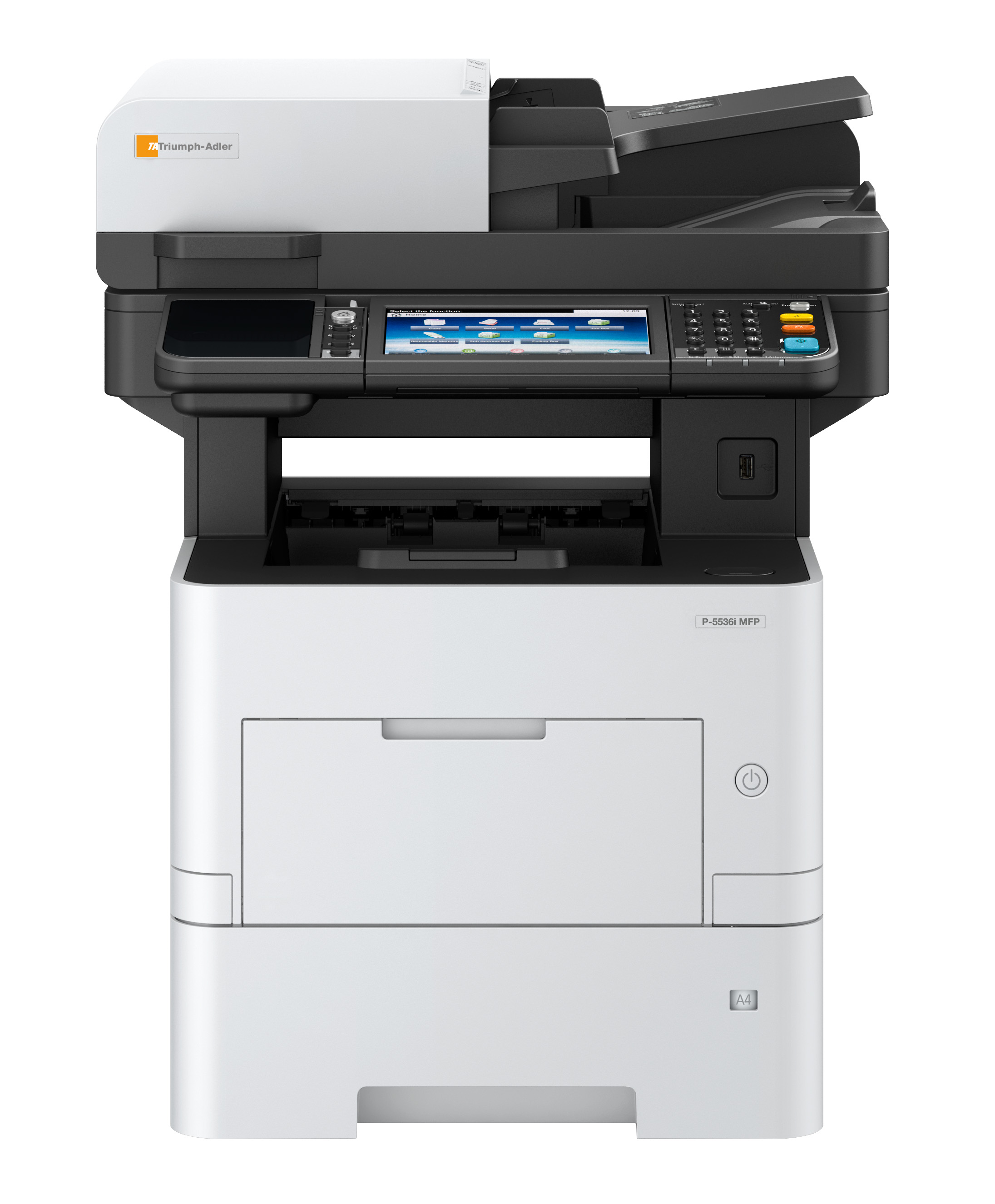

P-5536i MFP Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, fax
  • Print technologyLaser b/w
  • Original formatmax A4 from platen glass
  • Original feeder100 sheet document processor with simultaneous duplex scanning, A6R-A4, 50-120 g/m² (standard)
  • Print speed (A4, Simplex) B/W55 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W55 b/w-pages/min.
  • Print speed (A4, Duplex) B/W39.5 b/w-pages/min.
  • Copy speed (A4, Duplex) B/W39.5 b/w-pages/min.
  • 1st page (printing, b/w)4.5 seconds
  • 1st page (copying, b/w)8 seconds
  • Warm-up time25 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet
  • Paper feed (1st cassette types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm], banner: 915 mm length
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)120 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)120 g/m²
  • Paper output500 sheet A4 (face-down), 250 sheet A4 (face-up, with PT-320)
  • System memory (RAM)1 GB
  • System memory (RAM max)3 GB
  • System memory (Optional)32/128 GB SSD
  • Continuous copying (min)1
  • Continuous copying (max)999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsColour touch screen (7 inch), duplex, job reservation, favourites (programs), ID card copy, Scan once - Copy Many, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), 100 management codes

Dimensions / Weight

  • Dimensions (height)593 mm
  • Dimensions (width)480 mm
  • Dimensions (depth)495 mm
  • Weight24.1 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50 Hz
  • Power consumption (max)1271 W
  • Power consumption (busy)711 W
  • Power consumption (standby)54 W
  • Power consumption (sleep)0.5 W
  • Power consumption (TEC)0.74 kwh/week
  • Noise level (busy, b/w)54.7 dB(A)
  • Noise level (standby)25.8 dB(A)
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A4
  • Print resolution (max)1,200 x 1,200 dpi
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Novell NetWare, Linux, Mac ex OS 10.5
  • EmulationsPCL6 (PCL 5e/c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, Line Printer, IBM Proprinter, Epson LQ-850, XPS, Open XPS, PDF 1.7
  • FunctionsUSB direct printing, printing of e-mails, private printing, barcode printing, WSD-/Internet printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi

Scanning system

  • Scan typeCCD colour and b/w
  • Scan formatmax A4
  • Scan speed (Feeder 1, simplex, colour)40 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)60 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)80 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)120 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, PDF/A-1a, PDF/A, PDF/A-1b, PDF/A-2a, PDF/A-2b, PDF/A-2u, high compression PDF, encrypted PDF, XPS, OpenXPS, MS Office/text-searchable PDF
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2003, Server 2008 R2, Server 2012 R2, Server 2016
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Fax system

  • TypeIntegrated within the system
  • CompatibilitySuper G3
  • Original formatmax A4
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodJBIG, MMR, MR, MH
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)
  • Fax memory8 MB
  • Fax memory (image)3.5 MB
  • Abbreviated dial200 numbers
  • One touch dial100 numbers
  • Group dial50 numbers
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Server 2008 R2, Server 2012 R2, Server 2016
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission

Options

  • FinisherMS-5100 B manual stapler for 20 sheet

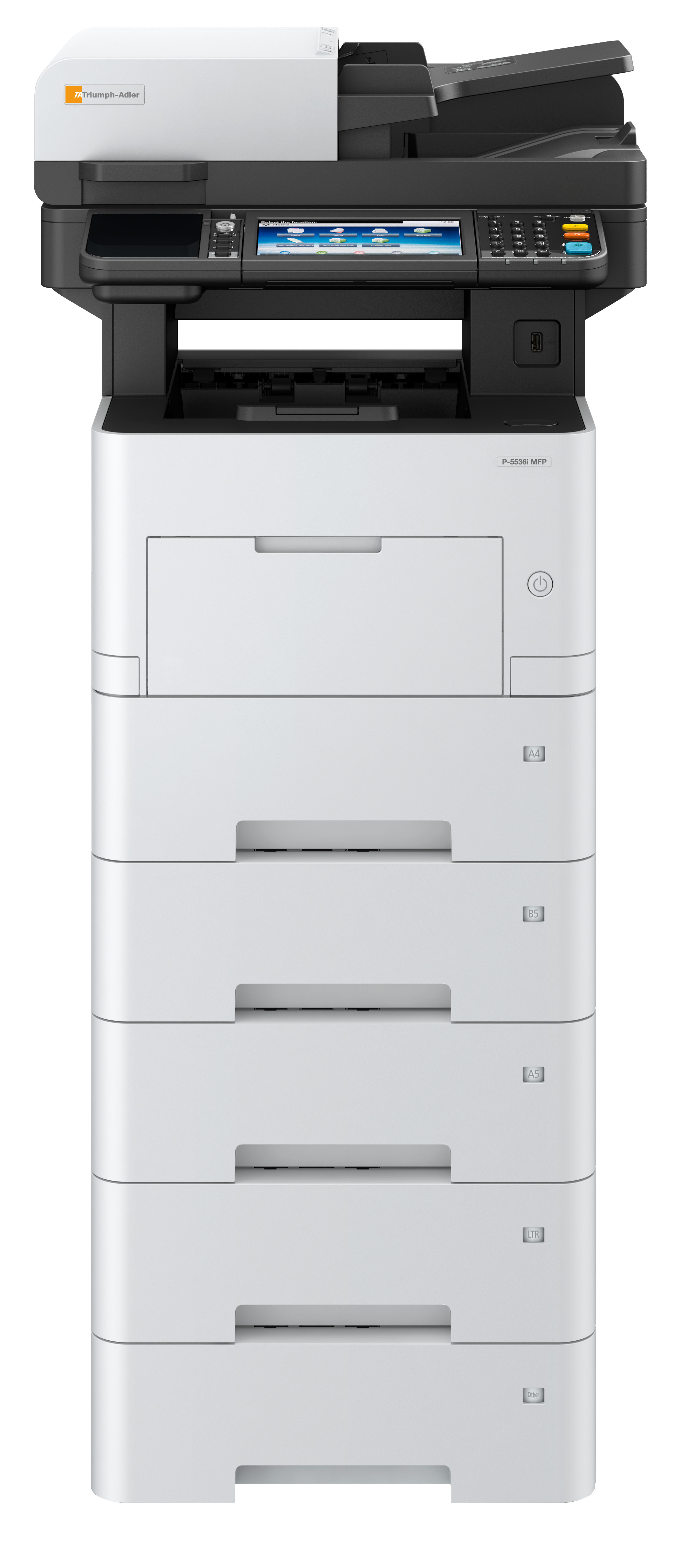

  • Paper feedmax 4 x PF-3110 (500 sheet universal cassettes (A5R-A4, 60-120 g/m²])
  • Other optionsPT-320 sheet output tray (250 sheet face-up), Data security kit (E), Scan extension kit (A), Card authentication kit (B), Card reader holder (10), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), cabinet no. 79 (high), cabinet no. 80 (low), caster kit CA-3100

Notes on technical data

  1. DIN/ISO 7779/9296
  2. optional
  3. optional
  4. optional
  5. optional
  6. additional memory required
