P-C2480i MFP

Space saving and efficient, well equipped and easy to use - this is how the P-C2480i MFP, which delivers 24 A4 pages/min, is most aptly described. Its HyPAS interface makes the integration of individual software solutions possible which will support you in digitising your documents most easily. But this is not all! Also the hardware can be upgraded whenever the need arises, for instance with additional paper supply or a hard disk.

Find a Retailer

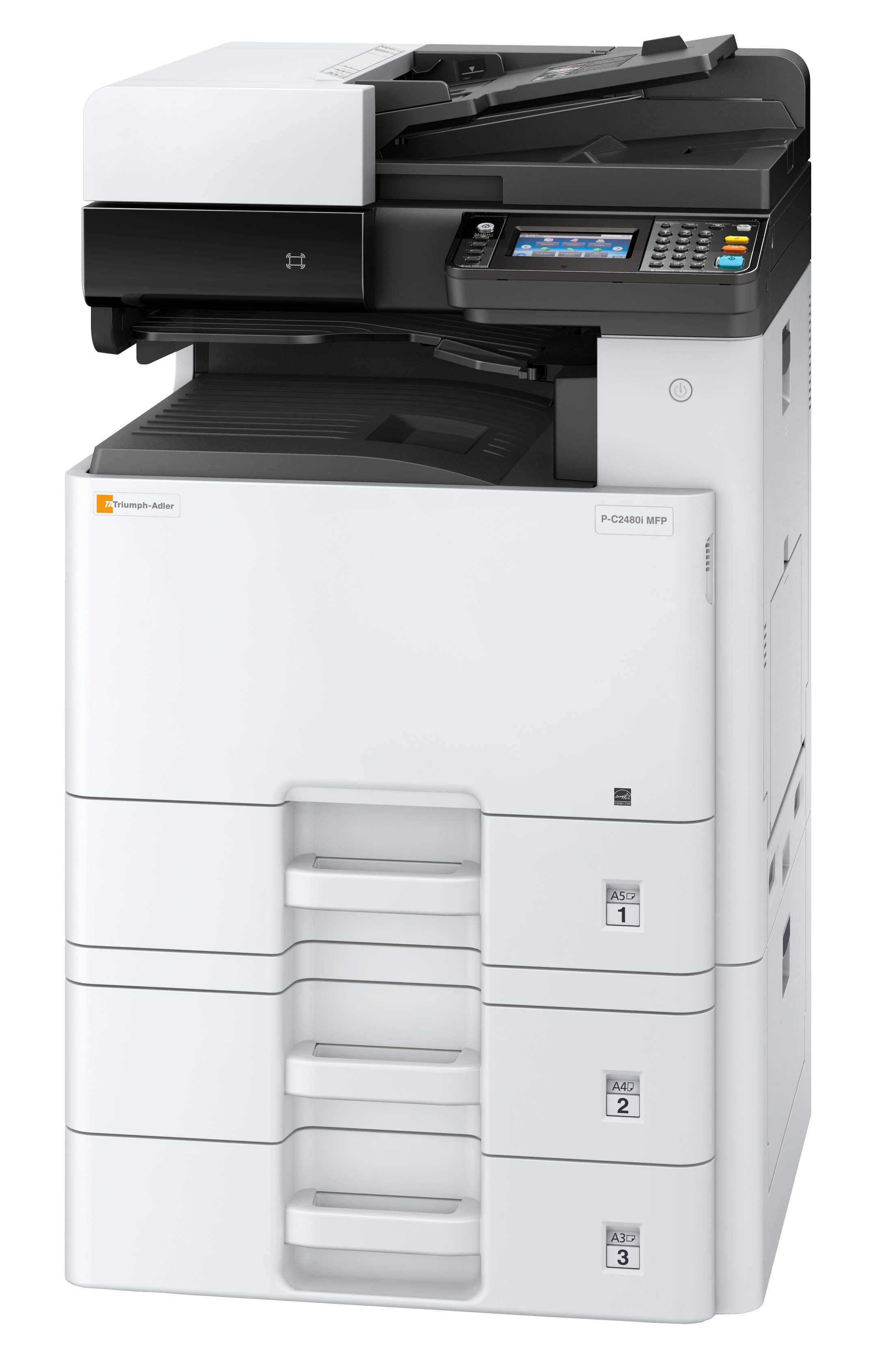

P-C2480i MFP Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, optional: fax
  • Print technologyLaser colour and b/w
  • Original formatmax A3 from platen glass
  • Original feeder50 sheet A4 (standard), min 140 x 182 mm, max 297 x 432 mm, 45-160 g/m² (simplex), 50-120 g/m² (duplex)
  • Print speed (A4, Simplex) B/W24 b/w-pages/min.
  • Print speed (A3, Simplex) B/W12 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W24 b/w-pages/min.
  • Copy speed (A3, Simplex) B/W12 b/w-pages/min.
  • Print speed (A4, Simplex) Colour24 colour pages/min
  • Print speed (A3, Simplex) Colour12 colour pages/min
  • Copy speed (A4, Simplex) Colour24 colour pages/min
  • Copy speed (A3, Simplex) Colour12 colour pages/min
  • 1st page (printing, colour)10.2 seconds
  • 1st page (printing, b/w)7.5 seconds
  • 1st page (copying, colour)9.8 seconds
  • 1st page (copying, b/w)7.6 seconds
  • Warm-up time30 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet
  • Paper feed (1st cassette types)A5R-A3
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A3
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)256 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)256 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)220 g/m²
  • Paper output250 sheet A4
  • Job Separator30 sheet A4 (standard)
  • System memory (RAM)1.5 GB
  • System memory (RAM max)3 GB
  • System memory (Optional)32/128 GB SSD
  • Continuous copying (min)1
  • Continuous copying (max)999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsColour touch screen (4.3 inch), duplex, Print from/Scan to USB Stick, job reservation, N-up, favourites, 100 management codes, etc.

Dimensions / Weight

  • Dimensions (height)753 mm
  • Dimensions (width)590 mm
  • Dimensions (depth)590 mm
  • Weight76 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50 Hz
  • Power consumption (max)850 W
  • Power consumption (busy)550 W
  • Power consumption (standby)70 W
  • Power consumption (sleep)0.5 W
  • Power consumption (TEC)0.31 kwh/week
  • Noise level (busy, b/w)47.3 dB(A)
  • Noise level (busy, colour)48.3 dB(A)
  • Noise level (standby)30.8 dB(A)
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A3
  • Print resolution (min)600 x 600 dpi
  • Print resolution (max)1,200 x 1,200 dpi (reduced speed)
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2), NFC, Wi-Fi
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Novell NetWare, Linux, Mac ex OS 10.5
  • EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ilc, PDF 1.7, XPS
  • Functions200 dpi, USB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, barcode printing, Mobile Print (Android/iOS), Apple AirPrint, Google Cloud Print, Wi-Fi

Scanning system

  • Scan typeCIS colour and b/w
  • Scan formatmax A3
  • Scan speed (Feeder 1, simplex, colour)50 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)50 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)16 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)16 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, PDF, XPS, OpenXPS, high compression PDF, JPEG
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Fax system

  • Typeoptional Fax System 13
  • CompatibilitySuper G3
  • Original formatmax A3
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodJBIG, MMR, MR, MH
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)
  • Fax memory16 MB
  • Fax memory (image)12 MB
  • Abbreviated dial200 numbers
  • One touch dial100 numbers
  • Group dial50 numbers
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission

Options

  • Paper feedPF-470 (1 x 500 sheet universal cassettes (A5R-A3)), PF-471 (2 x 500 sheet universal cassettes (A5R-A3))
  • Other optionsData security kit (E), Scan extension kit (A), Card authentication kit (B), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), cabinet no. 62

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
  3. depending on the operating status↩
  4. depending on the operating status↩
  5. DIN/ISO 7779/9296↩
  6. optional↩
  7. optional↩
  8. optional↩
  9. additional memory required for full functionality. HyPAS functionality is only available with additional memory↩
