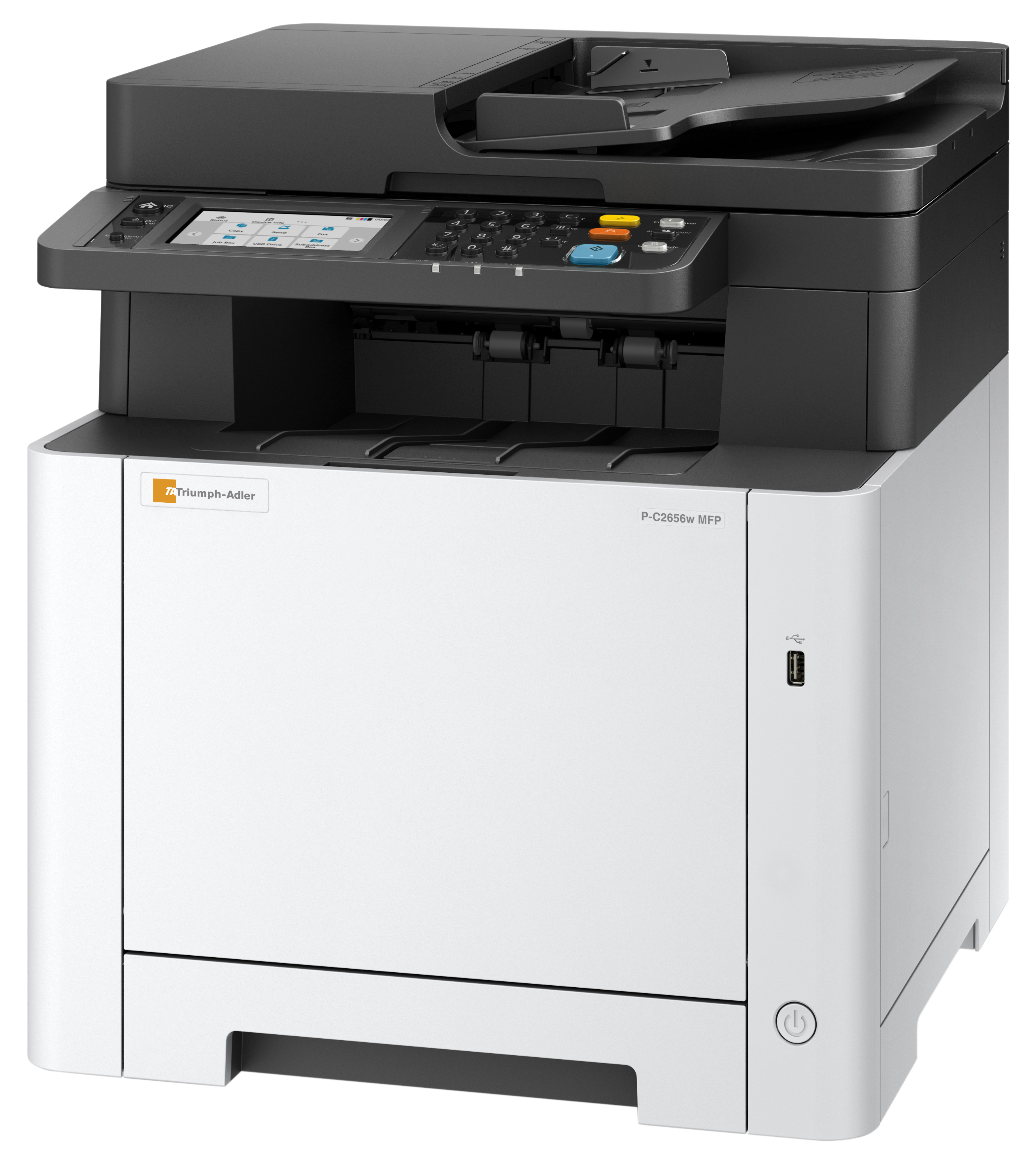

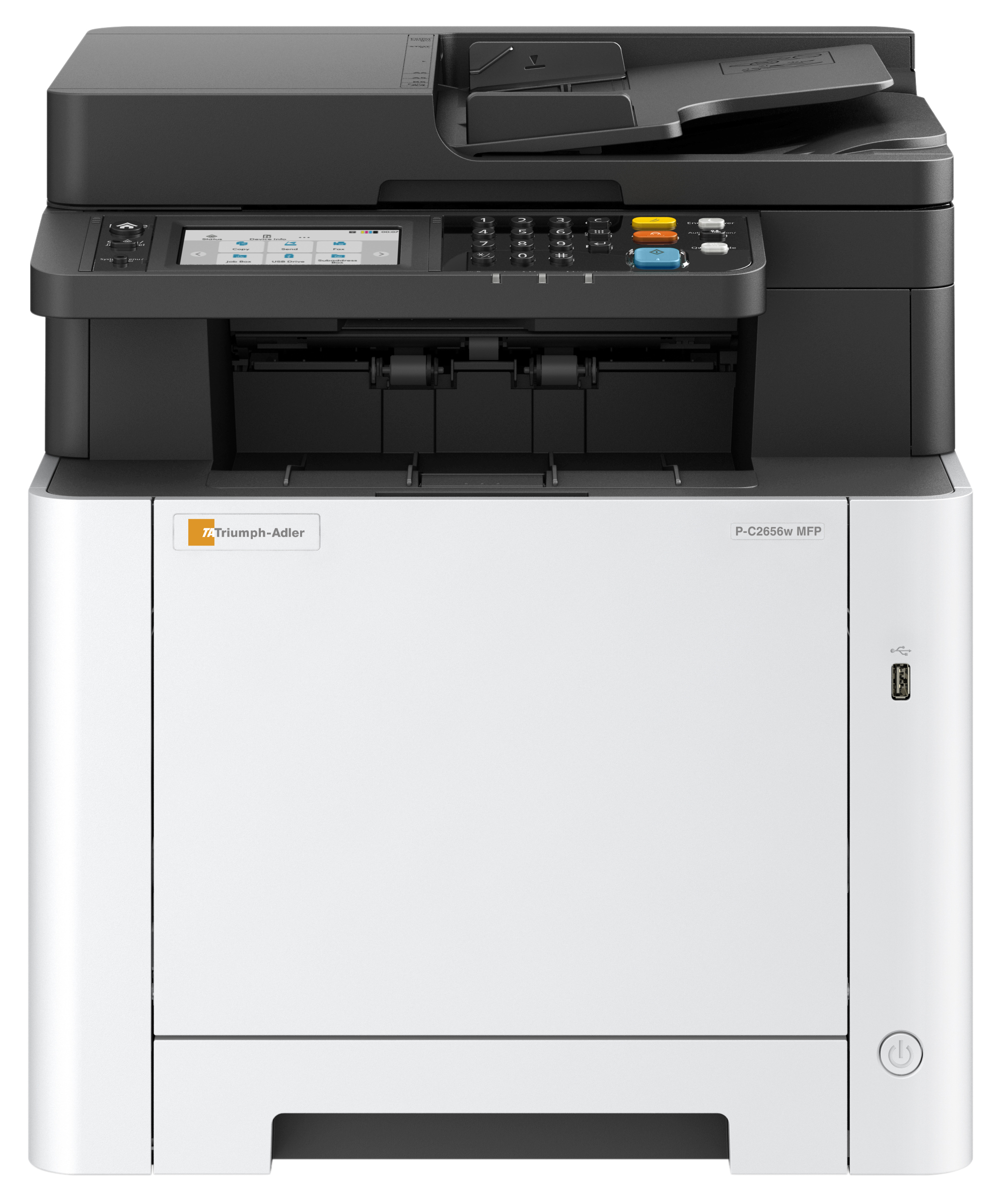

P-C2656w MFP

The P-C2656w MFP color system offers a print speed of 26 A4 pages per minute and also first-class print quality. With a resolution of up to 1,200 x 1,200 dpi, you can create high quality colour prints. Thanks to the integrated scan and copy functions, documents can be digitized and duplicated effortlessly at a resolution of up to 600 x 600 dpi. The simple and intuitive touchscreen display allows you to quickly and easily access all functions and manage print, scan and copy jobs. The multifunctional system is also equipped with WLAN as standard.

Find a Retailer
P-C2656w MFP Image

General

  • TypeDesktop
  • Functionscan, fax, print, Copy
  • Print technologyLaser colour and b/w
  • Original formatmax A4
  • Original feeder50 sheet A4 document processor with simultaneous duplex scanning (standard, A6R-A4, 50-160 g/m²)
  • Print speed (A4, Simplex) B/W26 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W26 b/w-pages/min.
  • Print speed (A4, Duplex) B/W13 b/w-pages/min.
  • Copy speed (A4, Duplex) B/W13 b/w-pages/min.
  • Print speed (A4, Simplex) Colour26 colour pages/min
  • Copy speed (A4, Simplex) Colour26 colour pages/min
  • Print speed (A4, Duplex) Colour13 colour pages/min
  • Copy speed (A4, Duplex) Colour13 colour pages/min
  • 1st page (printing, colour)10.5 seconds
  • 1st page (printing, b/w)9.5 seconds
  • 1st page (copying, colour)10 seconds
  • 1st page (copying, b/w)8 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 250 sheet
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)1 x 50 sheet
  • Paper feed (Multi-Bypass types)A6R-A4
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)163 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)120 g/m²
  • Paper output150 sheet A4
  • System memory (RAM)1 GB
  • System memory (RAM max)1 GB
  • Continuous copying (min)1
  • Continuous copying (max)999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • Functionsduplex, USB direct printing, Wi-Fi Direct®, quiet mode (half speed mode), skip blank pages, 100 management codes, N-up, job reservation, Colour touch screen (4.3 inch), trusted platform modul (TPM), Wi-Fi, Mobile Print (Android/iOS), Google Cloud Print, continuous scan, private printing, ID card copy, etc., printing of e-mails, Microsoft Universal Print

Dimensions / Weight

  • Dimensions (height)457 mm
  • Dimensions (width)417 mm
  • Dimensions (depth)416 mm
  • Weight33 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)1090 W
  • Power consumption (busy)375 W
  • Power consumption (standby)41 W
  • Power consumption (sleep)0.4 W
  • Power consumption (TEC)0.27 kwh/week
  • Noise level (busy, b/w)47.9 dB(A)
  • Noise level (busy, colour)48.1 dB(A)
  • SafetyCE, GS/TÜV

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A4
  • Print resolution (min)600 x 600 dpi
  • Print resolution (max)1,200 x 1,200 dpi (reduced speed)
  • Interfaces10/100/1000BaseTX, USB 2.0, USB host, Wi-Fi, SD-Card Slot
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 10, Server 2022, Chrome OS, Mac ab OS 10.14, Windows 8, Server 2012 R2, Server 2008 R2, Server 2016, Windows 8.1, Mac ex OS 10.9, Server 2019, Linux
  • EmulationsKPDL 3 (PostScript 3 compatible), XPS, PCL6 (PCL 5c, XL), Open XPS, PRESCRIBE Ilc
  • Functionsduplex, USB direct printing, Wi-Fi Direct®, Mobile Print (Android/iOS), Google Cloud Print, private printing, printing of e-mails, Microsoft Universal Print

Scanning system

  • Scan typeCIS colour and b/w
  • Scan formatmax A4
  • Scan speed (Feeder 1, simplex, colour)22 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)27 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)44 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)54 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modephoto/text, Photo, optimised for OCR, text
  • File typesJPEG, XPS, OpenXPS, TIFF, high compression and encrypted PDF, PDF
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP, Net BEUI
  • FunctionsLDAP, scan to FTP, Scan to SMB, SMTP authentication, WIA scan, TWAIN scan, scan to e-mail, scan to USB

Fax system

  • TypeIntegrated within the system
  • CompatibilitySuper G3
  • Original formatmax A4
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodMH, MR, JBIG, MMR
  • Fax resolutionsuper fine (200 x 400 dpi), Standard (200 x 100 dpi), ultra fine (400 x 400 dpi), fine (200 x 200 dpi)
  • Fax memory6.75 MB
  • Abbreviated dial200 numbers
  • One touch dial100 numbers
  • Group dial50 numbers
  • Functionsdelayed transmission, automatic redialling, Network fax driver

Options

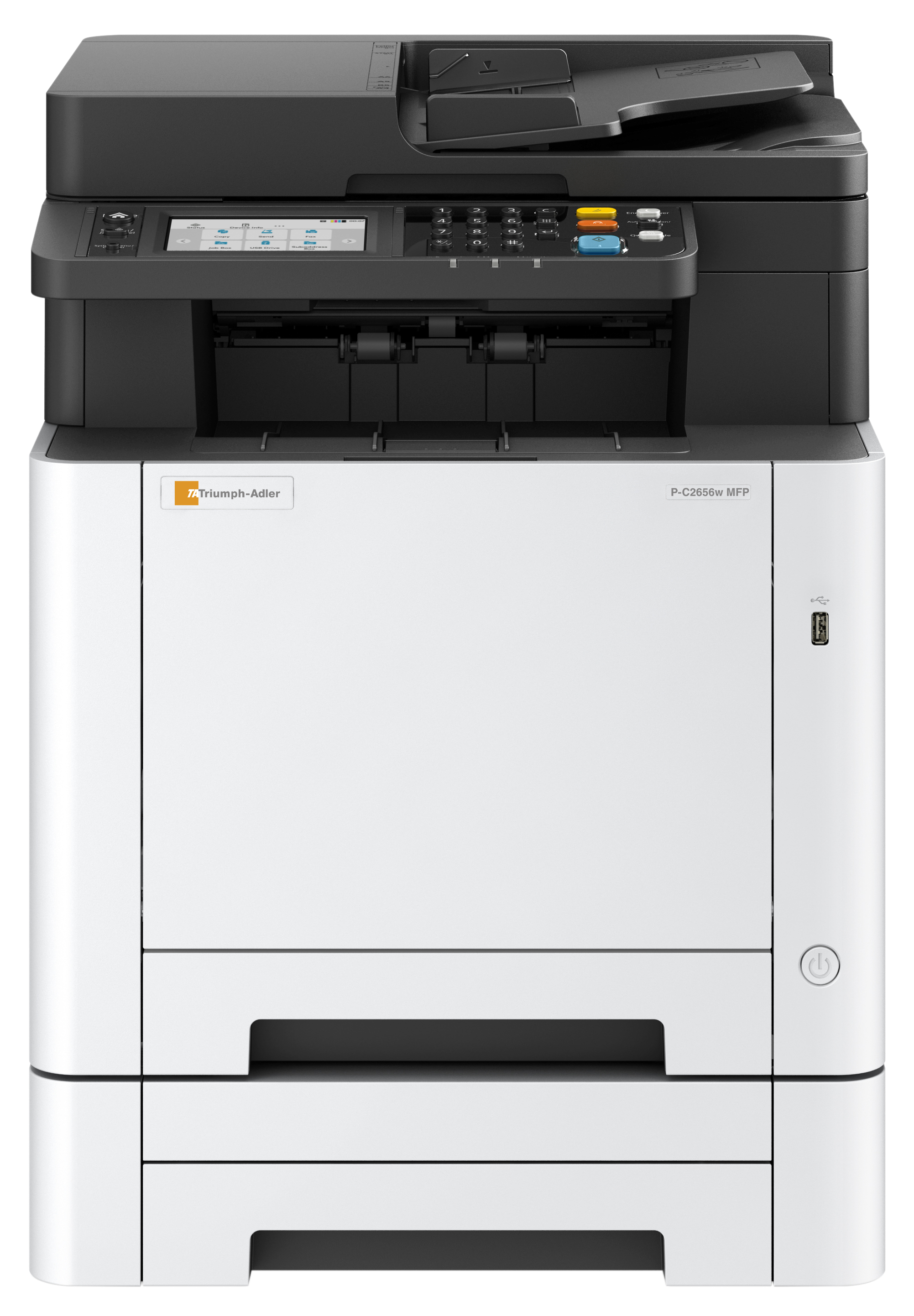

  • Paper feedmax 1 x PF-5110 (250 sheet universal cassettes [A6R-A4, 60-163 g/m²])
  • Other optionsUG-33 ThinPrint® kit, cabinet no. 77, Card authentication kit (B)
