P-C3566i MFP

The compact P-C3566i MFP makes it big: with a print resolution of up to 1,200 x 1,200 dpi, extremely versatile features, a generous paper supply, an integrated HyPASTM interface for helpful apps, a Super G3 fax system, an optional scan extension kit for the creation of text-searchable PDF-files plus a lot more - such as the compliance with international security standards.

Find a Retailer

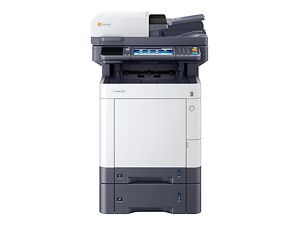

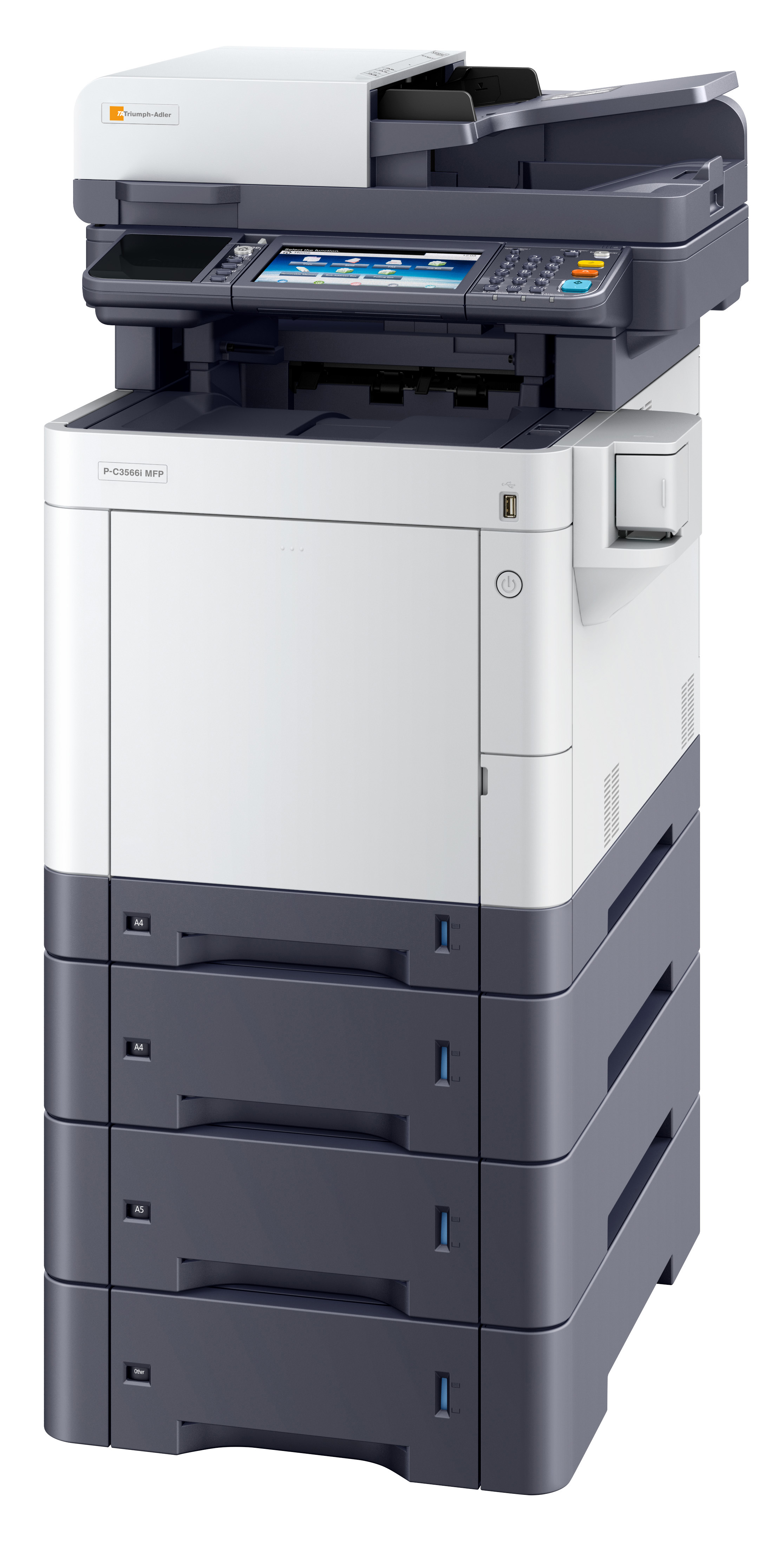

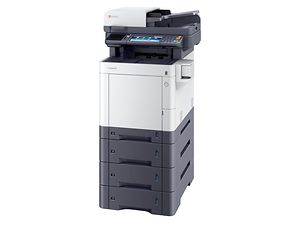

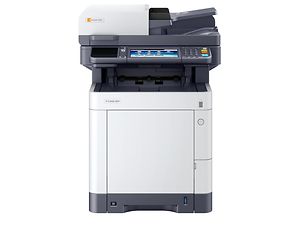

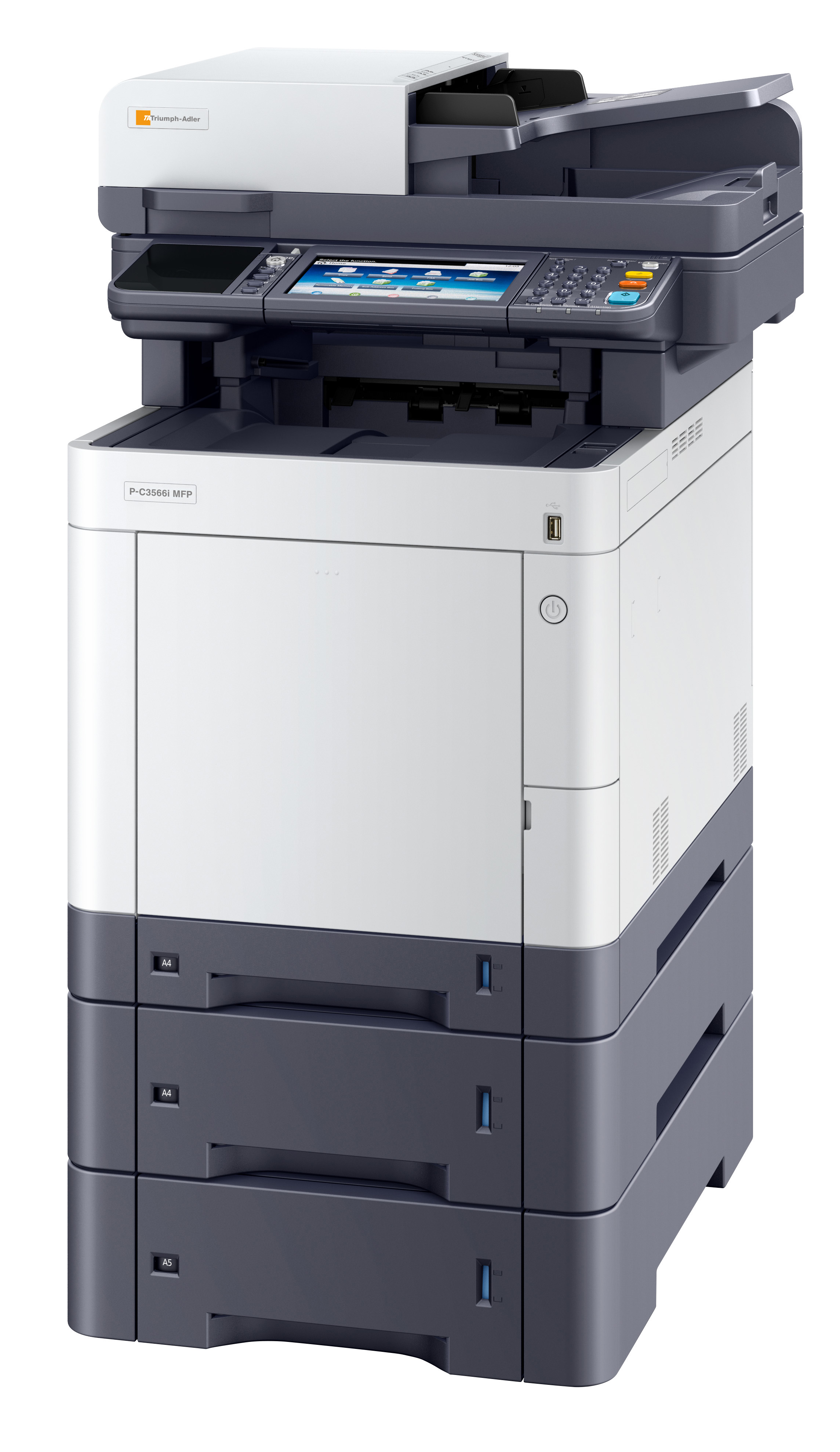

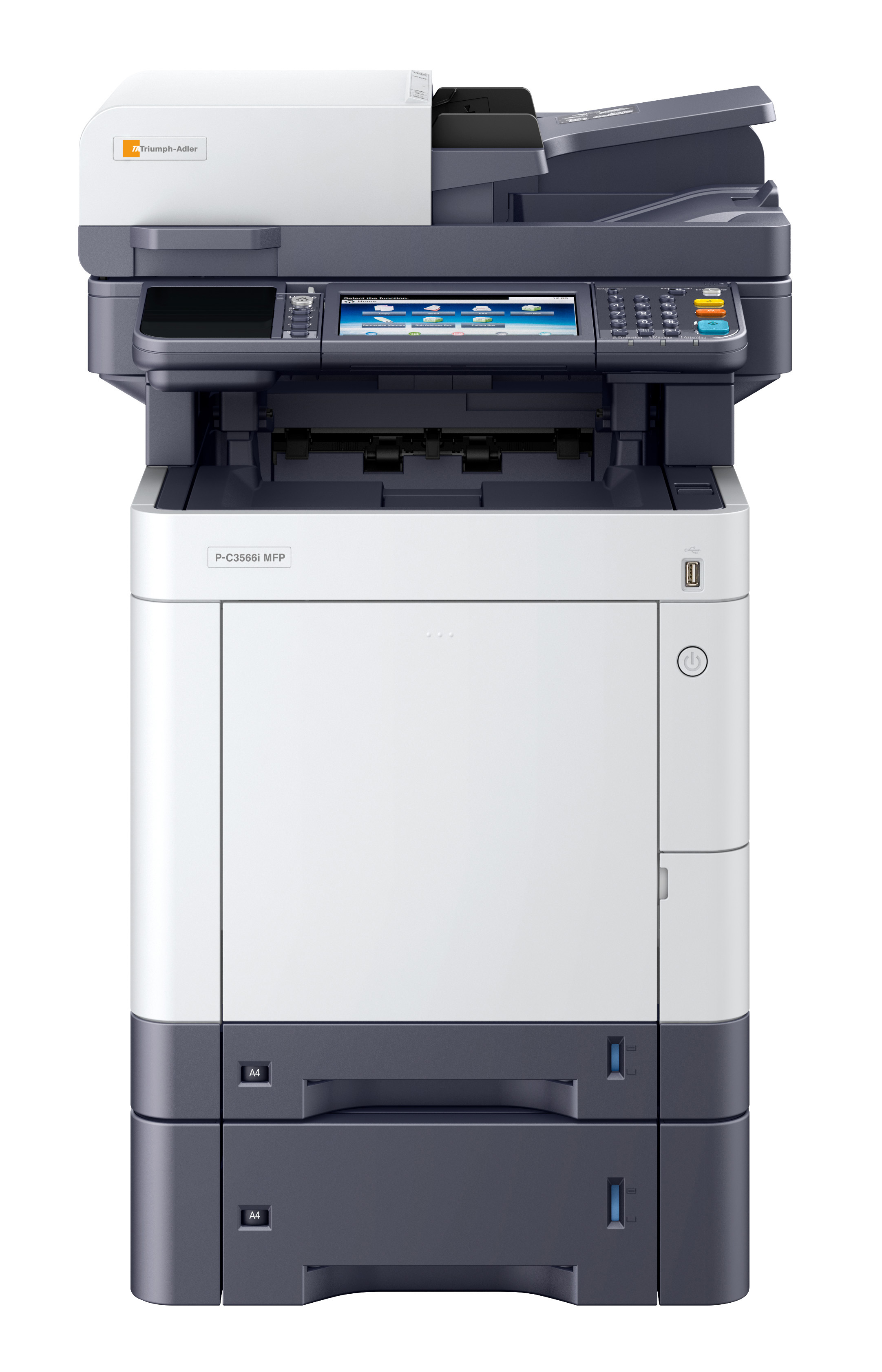

P-C3566i MFP Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, fax
  • Print technologyLaser colour and b/w
  • Original formatmax A4 from platen glass
  • Original feeder100 sheet A4 (dual-scan document processor), A6R-A4, 50-120 g/m² (simplex/duplex)
  • Print speed (A4, Simplex) B/W35 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W17 b/w-pages/min.
  • Print speed (A4, Simplex) Colour35 colour pages/min
  • Print speed (A4, Duplex) Colour17 colour pages/min
  • 1st page (printing, colour)7.5 seconds
  • 1st page (printing, b/w)6 seconds
  • 1st page (copying, colour)8.5 seconds
  • 1st page (copying, b/w)7.5 seconds
  • Warm-up time25 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 250 sheet
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)163 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)163 g/m²
  • Paper output250 sheet A4
  • System memory (RAM)1 GB
  • System memory (RAM max)3 GB
  • System memory (Optional)32/128 GB SSD
  • Continuous copying (min)1
  • Continuous copying (max)999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsAdjustable colour touch screen (7 inch), duplex, job reservation, job programs, ID card copy, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), login by function, 100 management codes

Dimensions / Weight

Environment

  • Mains voltage220/240 V
  • Utility frequency50 Hz
  • Power consumption (max)1346 W
  • Power consumption (busy)521 W
  • Power consumption (standby)84 W
  • Power consumption (sleep)0.6 W
  • Power consumption (TEC)0.49 kwh/week
  • Noise level (busy, b/w)50.4 dB(A)
  • Noise level (standby)29.6 dB(A)
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A4
  • Print resolution (min)600 x 600 dpi
  • Print resolution (max)1,200 x 1,200 dpi (reduced speed)
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2), Wi-Fi
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.5
  • EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ilc, XPS, PDF 1.7
  • Functions200 dpi, USB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, quiet mode (half speed mode), barcode printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi

Scanning system

  • Scan typeCCD colour and b/w
  • Scan formatmax A4
  • Scan speed (Feeder 1, simplex, colour)40 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)60 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)46 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)62 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, PDF/A-1, PDF/A-2, high compression PDF, encrypted PDF, XPS, OpenXPS, MS Office/text-searchable PDF
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Fax system

  • TypeIntegrated within the system
  • CompatibilitySuper G3
  • Original formatmax A4
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodJBIG, MMR, MR, MH
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)
  • Fax memory8 MB
  • Fax memory (image)3.5 MB
  • Abbreviated dial200 numbers
  • One touch dial100 numbers
  • Group dial50 numbers
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Server 2008 R2, Server 2012 R2, Server 2016
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission

Options

  • FinisherMS-5100 manual stapler for 20 sheet
  • Paper feedmax 3 x PF-5100 (500 sheet universal cassettes [A5R-A4, 60-220 g/m²])
  • Other optionsData security kit (E), Scan extension kit (A), Card authentication kit (B), Card reader holder (10), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), cabinet no. 72 (high), cabinet no. 73 (low)

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
  3. depending on the operating status↩
  4. depending on the operating status↩
  5. depending on the operating status↩
  6. with DP↩
  7. with DP↩
  8. with DP↩
  9. DIN/ISO 7779/9296↩
  10. optional↩
  11. optional↩
  12. optional↩
  13. optional↩
  14. optional↩
  15. additional memory required for full functionality↩
